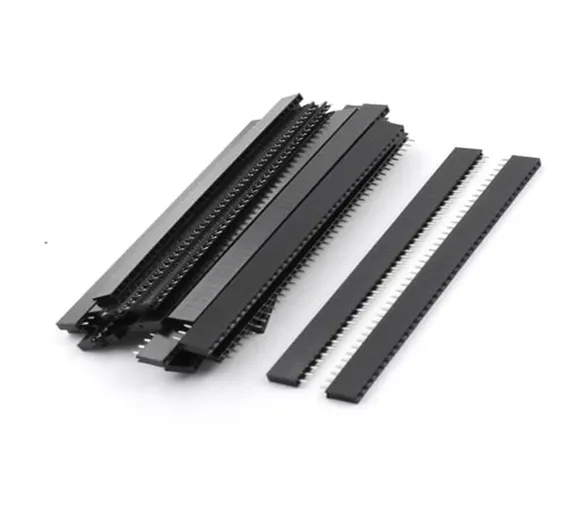

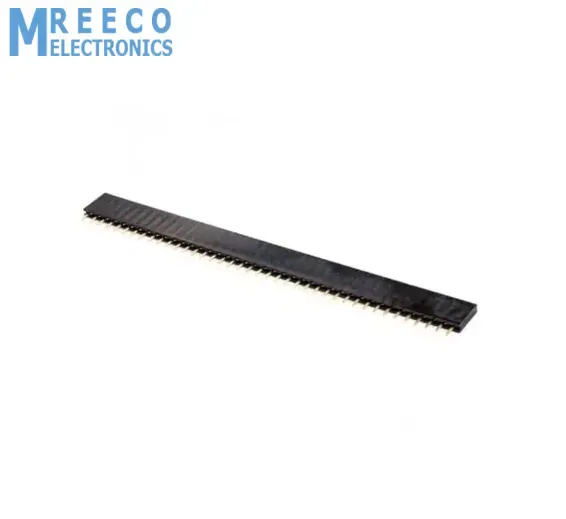

2.54mm Pitch 40 Pin Single Row Female Header Strip

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718952103106146

Rs.40 Rs. 50

40 Pin Single Row Female Header Strip is commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. 40 Pin Single Row Female Header Strip, the standard spacing is the same as on most solderless breadboards and matches 0.1 male header strips. Our straight female headers are available in a variety of commonly used pin counts. A single row of the 40-holes female header can be cut to size with a pair of wire-cutters. We use them extensively in our SparkFun Original boards. They mate very well with break away male headers.

We have also 40 pins round female header strip, 40 pins round male header strip, Red color 40pins header strip etc.

Features of 40 Pin Single Row Female Header Strip:

  • 0.1" straight female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs.
  • The standard spacing is the same as on most solderless breadboards.
  • High-quality material, easy to use.
  • Straight mounting angle.
  • Use in mostly in electric products as an electric component.

Specifications of 40 Pin Single Row Female Header Strip:

  1. Receptacle Style: Square
  2. Number of Pins: 40
  3. Pin Spacing: 0.1″ (2.54 mm)
  4. Receptacle Depth: 6 mm
  5. Current rating: 3.0 AMP
  6. Operation temperature: -40°C to +105°C
  7. Contact resistance: 20mΩ Max
  8. Insulation resistance: 1000MΩ Min
  9. Withstanding Voltage: AC/DC 1000V
  10. Insulator Material: Polyester (UL94V-0) 30% Glass Fiber PBT
  11. Contact material: Brass

Package Includes:

1 x 40 Pin Single Row Female Header Strip
