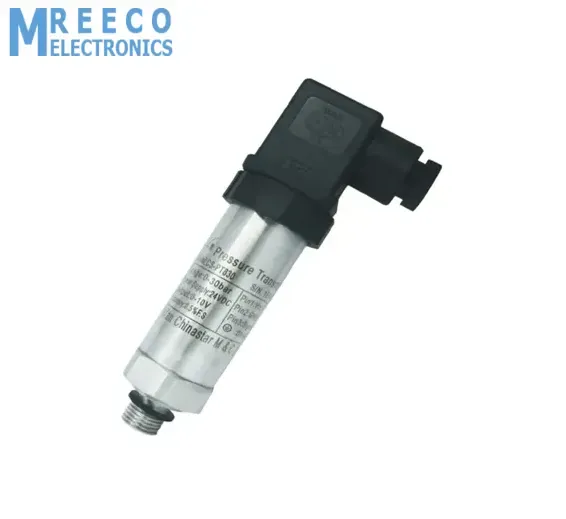

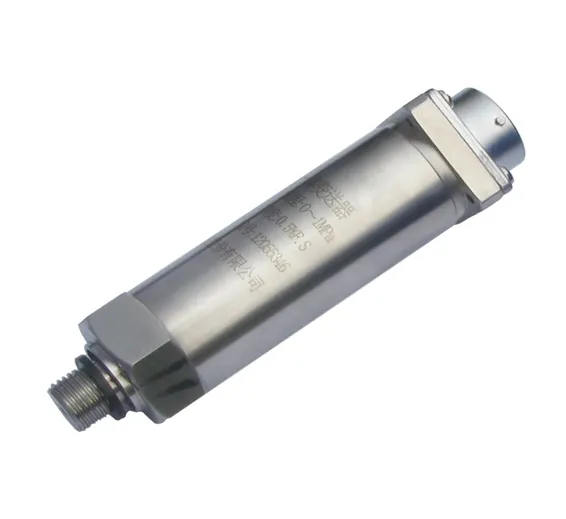

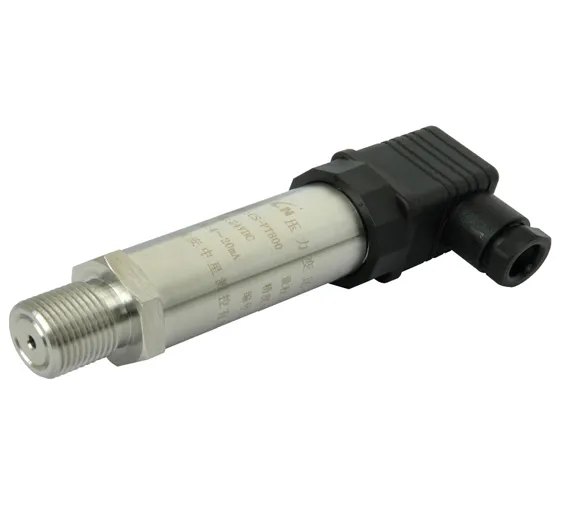

400 Bar 0 To 5V Hydraulic Pressure Sensor GPT230

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637725014066926986

Rs.30000 Rs. 37500

GPT230 400 Bar Hydraulic Pressure Sensor has the characteristics of high-quality high stability, small size, low weight, compact structure, low cost. The production volume of this oil pressure sensor is widely used to measure pressure, such as the occasion of the compressor, auto, etc. This GPT-230 pressure transmitter is made of stainless steel and well-known sensor brand transmitter converter special circuit can adjust the zero value and the whole range expediently.

Features Of GPT-230 Hydraulic 400 Bar 0 To 5V Pressure Sensor:

  • High-Temperature Environment.
  • Gas and Hydrologic Monitoring.
  • Boiler Pressure Monitoring.
  • ±0.5%FS,±1%FS accuracy.
  • high stability, high reliability.
  • ceramic sensor from German.
  • digital calibration.
  • multiple connectors and ports.
  • CE is compliant.
  • ROHS compliant.

Applications Of GPT230 Hydraulic Actuator 400 Bar 0 To 5V:

  • Process control system.
  • Compressor.
  • Building Water supply.
  • Hydraulic control.
  • Air conditioner.
  • Automotive engine.
  • Automatic detection system.
  • Hydraulic Pressure station.
  • Refrigerator.

Specifications Of GPT230 Pressure Transmitter Sensor 400 Bar:

  1. Pressure range: 0~200kPa...60MPa
  2. Pressure type: gauge (G )
  3. Overload pressure: 150%FS
  4. Accuracy: 0.5%FS(typ.), ±1.0%F.S (max.)
  5. Long-term stability: 0.5%FS/year(typ.), 1.0%FS/year(max.)
  6. Temp.coefficient of zero: ±0.05%FS/°C(typ.), ±0.1%FS/°C(max.)
  7. Temp.coefficient of span: ±0.05%FS/°C(typ.), ±0.1%FS/°C(max.)
  8. Operating temperature: -40°C~100°C
  9. Compensate temperature: -10°C~80°C
  10. Storage temperature range: -40°C~100°C
  11. Medium compatibility: All corrosive medium compatible with 1Cr18Ni9Ti
  12. Output signal: 4~20mA, 0.5~4.5V
  13. Power supply: 10~30Vdc,5V(ratio)
  14. Load resistance: R≤(U-15)/0.02 (for 4/20mA), R>100kΩ(for votage output
  15. Insulating resistance: >100M Ω@100V
  16. Electrical interface: packard,DIN43650,plug connection,cable connection,waterproof outlet
  17. Pressure interface: M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request)
  18. Material of pressure membrane: ceramic
  19. Material of housing: Cr18Ni9Ti stainless steel
  20. Response time(10%~90%): ≤10ms
  21. Shock/impact: 10gRMS,(20~2000)Hz / 100g,11ms
  22. Protection: IP65
  23. Certification: CE ,Ex ,ROHS
  24. EMC: EMI:EN50081-1/-2, EMS: EN50082-2

Package Includes:

  • 1 x GPT230 Oil Pressure Sensor
