2SC945 C945 50V 0.15A Bipolar NPN Transistor

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719001527650572

Rs.5 Rs. 6

Bipolar NPN Transistor is an age-old Japanese Bipolar audio frequency NPN transistor. 2SC945 50V NPN transistor has a decent gain value (hfe) of maximum 700 and is highly linear. Hence this bipolar transistor was widely used in amplifier applications for pre-amplifying purpose, in high-frequency circuits. This NPN junction transistor is also used as oscillators with is complementary A733 PNP transistor. When used as a switch it can easily be controlled by an MCU/MPU since it has a base voltage of only 5V. C945 transistor NPN can switch loads up to 50V but has a very low collector current rating of the only 150mA so this transistor is not really a good choice to be used as a switch. A better alternative for switching applications will be 2N2222.

Features Of 2SC945 Best Bipolar NPN Transistor:

  • 2sc925 well known as C945 NPN transistor.
  • Max Voltage Collector Emmiter=50 V.
  • Max Collector current=150 mA.
  • Collector power dissipation: 400 mW.
  • Japanese High-frequency amplifier NPN Transistor.
  • Current Gain (hFE) is 70 to 700 (high linearity).
  • Continuous Collector current (IC) is 150mA.
  • Collector-Emitter voltage (VCEO) is 50 V.
  • Collector-Base voltage (VCB0) is 60V.
  • Emitter Base Voltage (VBE0) is 5V.
  • Transition Frequency is 150MHz.

Specifications Of Amplifier High-Frequency OSC NPN Transistor:

  1. Type of transistor: NPN
  2. Polarisation: Bipolar
  3. Collector-Base Breakdown Voltage: 60V
  4. Collector-Emitter Breakdown Voltage: 50V
  5. Collector current: 150mA
  6. Power: 250mW
  7. Case: TO92
  8. Mounting: THT
  9. Frequency: 250MHz

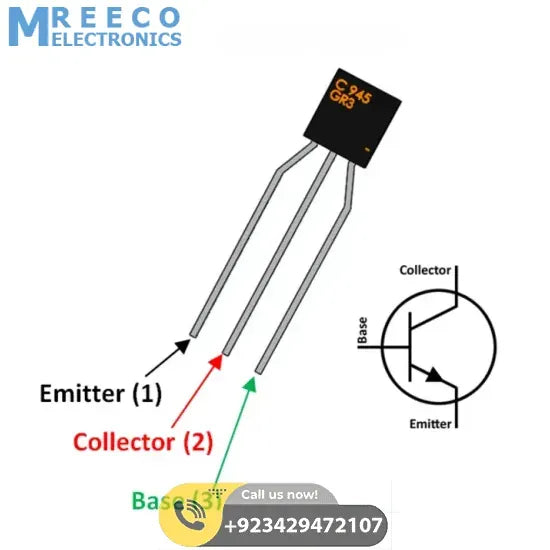

Pin Description:

  1. Emitter: Current Drains out through emitter, normally connected to ground
  2. Collector: Current flows in through collector, normally connected to load
  3. Base: Controls the biasing of the transistor, Used to turn ON or OFF the transistor


  • Low current switches
  • Pre-amplifiers
  • H-bridge circuits for low power motors
  • Audio frequency amplifier circuits
  • Oscillator circuits

Package Includes:

  • 1 x 2SC945 Bipolar NPN Transistor

Best Online Shopping website for 50V 0.15A Bipolar NPN Transistor 2SC945 C945 Best PCB Circuit Board Transistor in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
