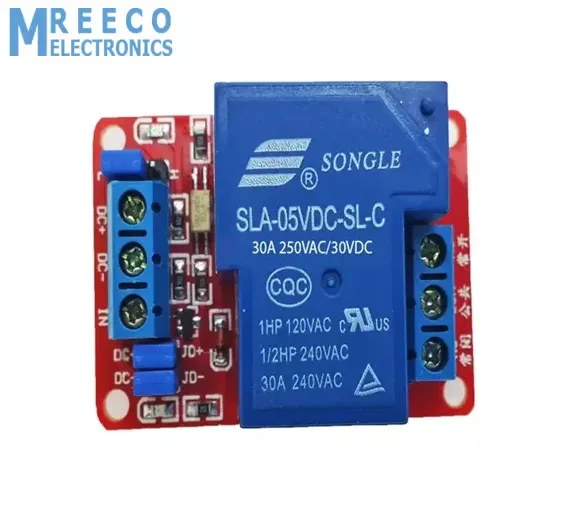

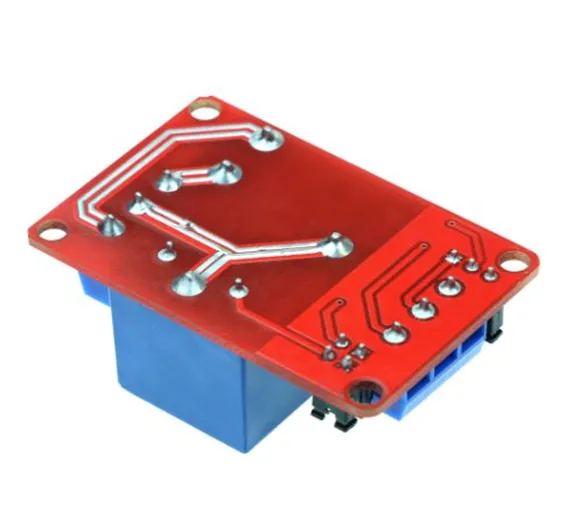

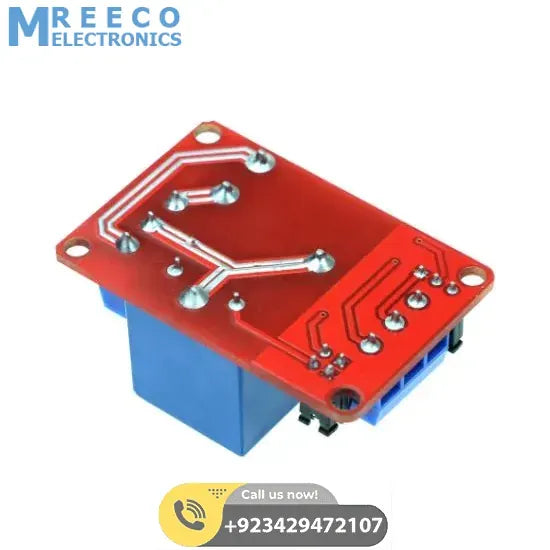

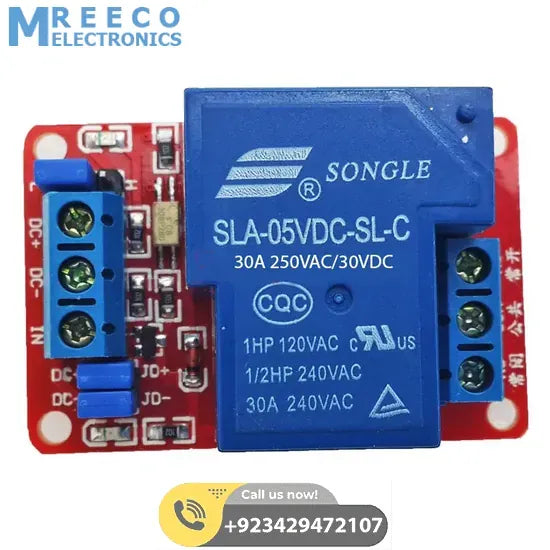

5V 30A 1 Channel Relay Module SLA-05VDC-SL-C

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720684823899004

Rs.450 Rs. 563

The Single Channel Relay Module is a convenient board that can be used to control high voltage, high current loads such as motor, solenoid valves, lamps, and AC load. this single-channel 5V 30A Relay Module board with LED indicators can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V. The user can choose the relay control level, can be a high level off, also can be low level and off. The Single-channel 5V 30A Relay Module contains a limited flow resistance, can directly use the power supply is a negative control, you can also use the MCU I/O control.

Click below for an alternative product.

Features:

  1. 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A;
  2. Optical coupling isolation, driving ability is strong, stable performance;
  3. Trigger current is 5mA;
  4. The module can be set high level or low-level trigger by the jumper;
  5. Power indicator light (green), relay status indicator light (red);
  6. Module Size:50mm*33mm*24mm;
  7. Operating Voltage:5V
  8. The static current: 5mA
  9. Working current: 190mA
  10. Trigger current: 2-4mA

Module Interface Specifications:

  1. DC +: DC power supply positive pole
  2. DC-: DC power supply negative pole
  3. IN: signal triggering pin
  4. JD+ : relay control voltage positive
  5. JD-: relay control voltage negative
  6. DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
  7. High and low-level trigger mode selection. Jumper and L pin connection, IN pin is low-level trigger upper and H pin connection, IN pin, is a high-level trigger
  8. Normally closed pin (NC): relay normally closed pin
  9. Common pin (COM): relay common pin
  10. Normally opened pin (NO): relay normally opened pin

Buy 5V 30A 1-Channel Relay Module SLA-05VDC-SL-C at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of 1-channel relay board for Arduino and many other controllers. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Includes:

1 x 5V 30A 1-Channel Relay Module SLA-5VDC-SL-C
