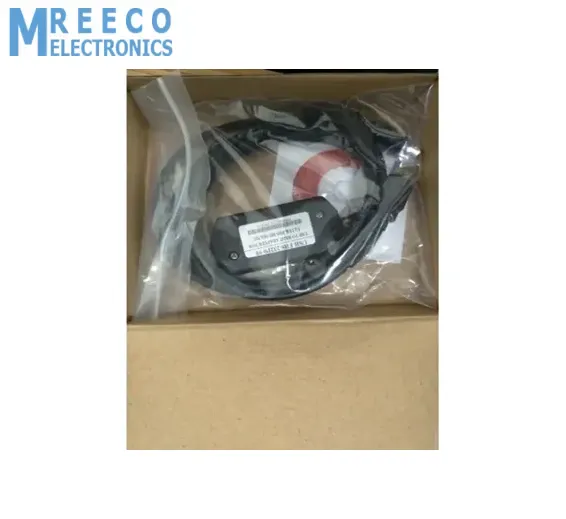

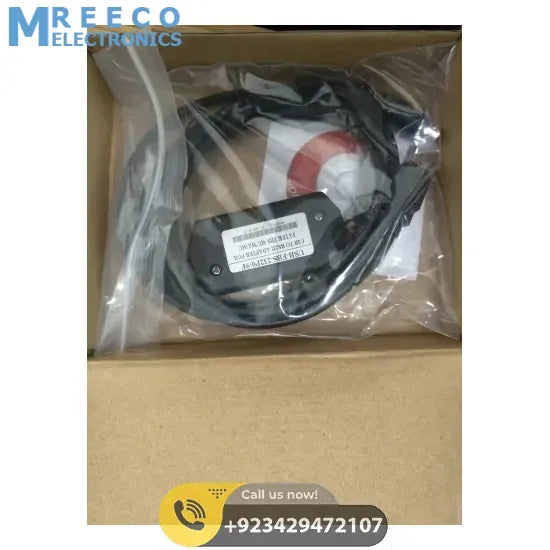

FATEK PLC Programming Cable
FATEK PLC Programming Cable In Pakistan Its USB CABLE CABLE USB-FBS-232P0-9F + programming cable is provided through the USB interface to serial connection and RS232 signal conversion optocoupler programming cable, under the control of the driver running on the computer, will simulate the traditional serial computer’s USB port, so use various existing programming software, communication software and monitoring software and other applications. Working power cable from the USB port and by the DC / DC isolated power supply, no longer on the converter box (TX- sent; PWR- power; RX- accepted) PLC port powered by the transceiver status LED indicates data. USB-FBS-232P0-9F + isolated programming cable is suitable for Taiwan-Hong Yong FSB series PLC, the connection PLC COM1 port. Round 4 pin + USB Features and Specifications: Support USB-FBS-232P0-9F + isolated operating system: WIN2000 / WINXP / WIN7 / WIN8. Support USB-FBS-232P0-9F + Isolated programming software version: WinProladder3.24 or more. Fully compatible with 1.1 or USB 2.0. USB bus-powered, the current consumption of about 70mA. Baud Rate: 300bps ~ 1Mbps standard automatic baud rate adaptation. Support UART data format: data bits: 7, 8, stop bits: 1, 2 Parity: odd / even / no parity Cable length: 2.5 m. Instructions: After the driver installation is complete, USB-FBS-232P0-9F + isolated programming cable corresponding COM port in the Windows Device Manager, simply select the COM port in the programming software or other application software and keep other communication parameters using the default settings, use the following programming cable are identical with the traditional RS232 interface.
