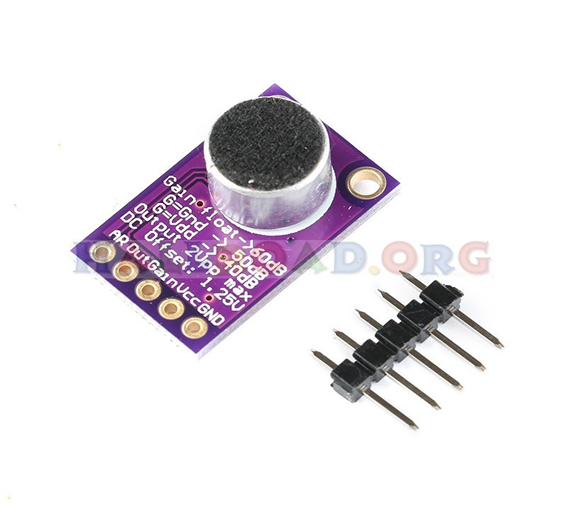

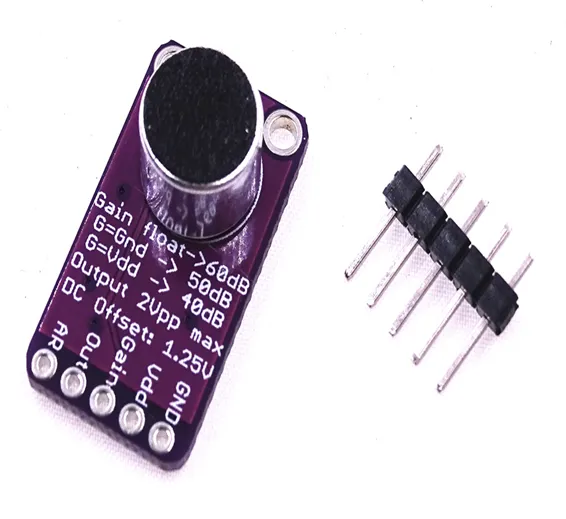

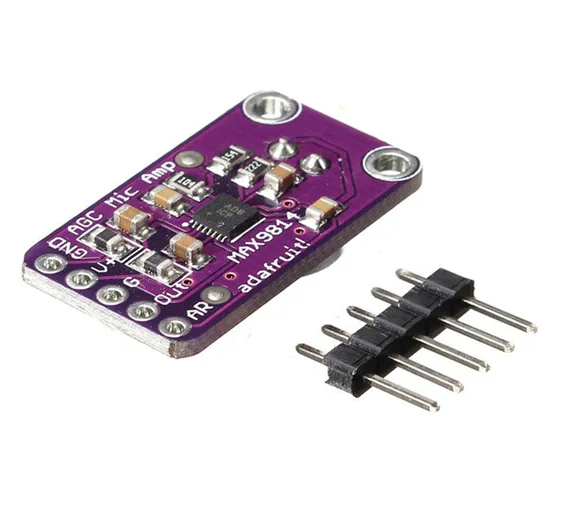

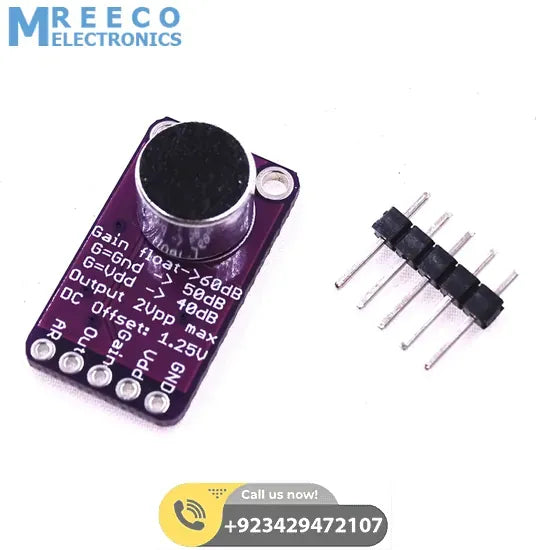

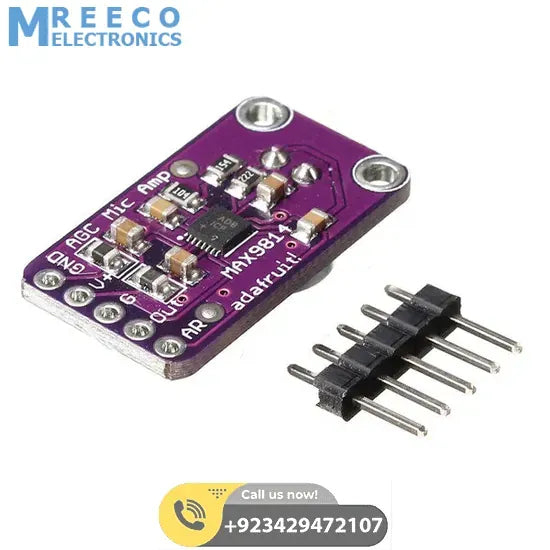

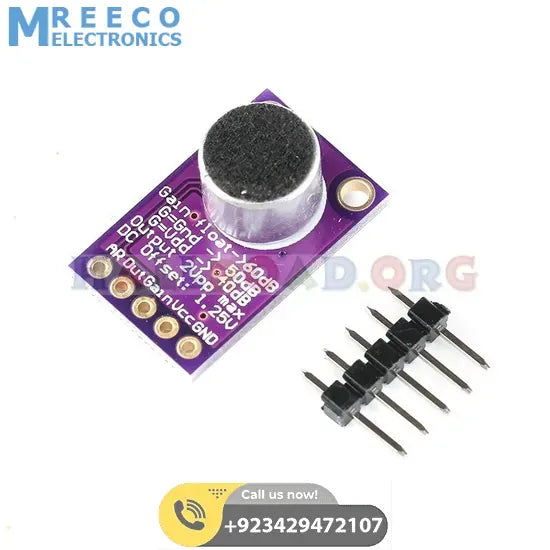

MAX9814 Microphone Amplifier Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719018024220896

Rs.600 Rs. 750

MAX9814 Microphone Amplifier Module consists of a digital microphone (20-20 kHz) and also a special amplifier on the MAX9814 chip from Maxim. The microcircuit amplifies sound far better than other amplifiers because of the integrated automated gain control (AGC), which suppresses "loud" noises and also amplifies "soft" audios. The module is perfect for tasks where audio levels transform often and also you do not need to continuously change the gain.

As you can see, the MAX9814 amplifier module has an added GAIN input, with which you can change the "Optimum gain", if you do not connect it, the maximum gain will certainly be 60 dB. If you attach the output to GND, the gain will certainly be 50 dB as well as the minimum gain can be gotten by linking this result to power supply 40 dB. Additionally, you can readjust the reaction time recovery time proportion, for this you need to link the AR pin to VDD we obtain 1: 2000 ms, if we link to GND we obtain 1: 500 ms as well as if we leave the default we get 1: 4000 ms.

Pin assignment:

► AR - adjustment of response time / recovery time
► Gain - adjustment of "Maximum gain"
► Out - output of a sound signal.
► Vdd and GND - module power supply


  1. Bluetooth Headsets
  2. Two-Way Communicators
  3. High-Quality Portable Recorders
  4. IP Phones/Telephone Conferencing

MAX9814 Microphone Amplifier Module Technical Specifications:

  1. Supply Voltage: 2.7v-5.5v @ 3mA current
  2. Output: 2Vpp on 1.25V bias
  3. Frequency Response: 20Hz – 20 KHz
  4. Programmable Attack and Release Ratio
  5. Automatic gain, selectable max from 40dB, 50dB or 60dB
  6. Low Input-Referred Noise Density of 30nV/
  7. Low THD: 0.04% (type)

Documents and Downloads:

  1. MAX9814 Datasheet
  2. MAX9814 Arduino Library

Package Includes:

1x Electret Microphone Amplifier – MAX9814 with Auto Gain Control
