Hi-Low Voltage Protectors

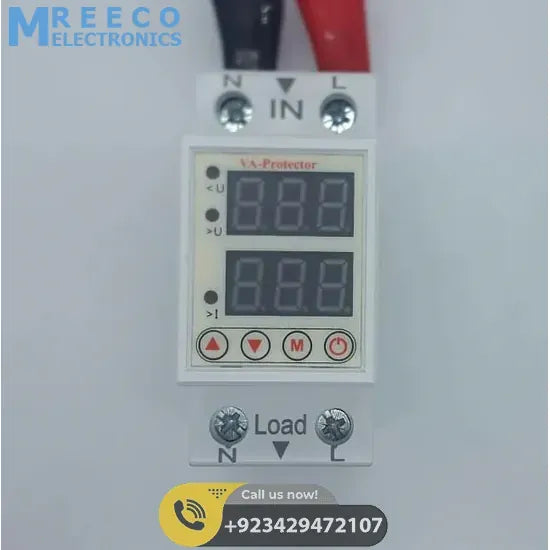

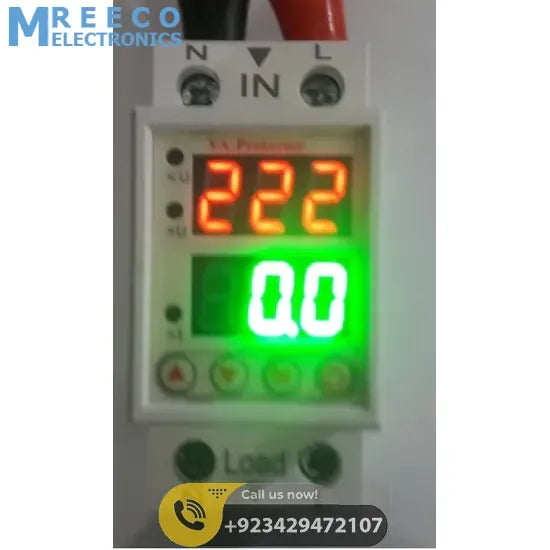

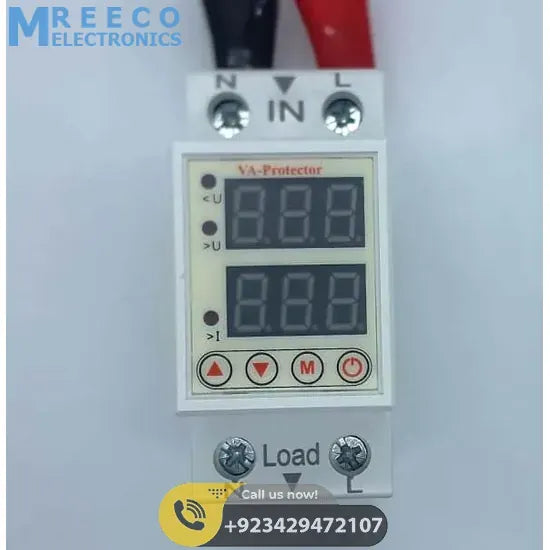

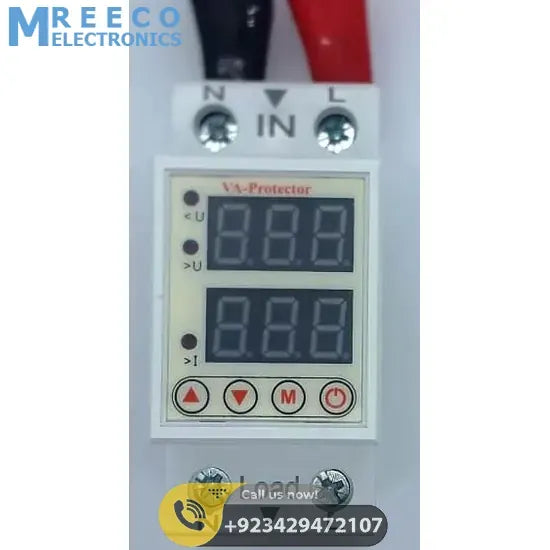

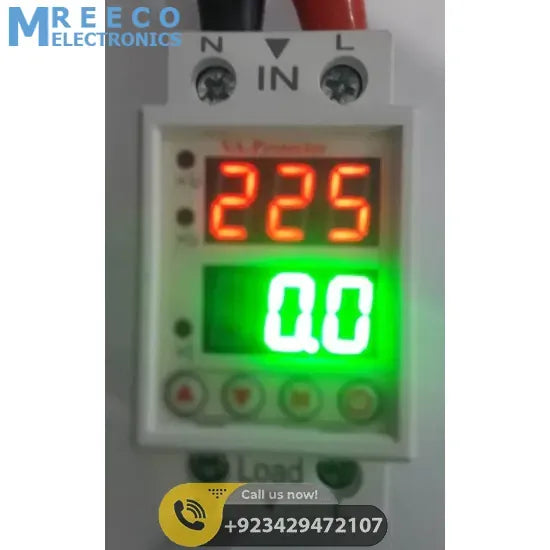

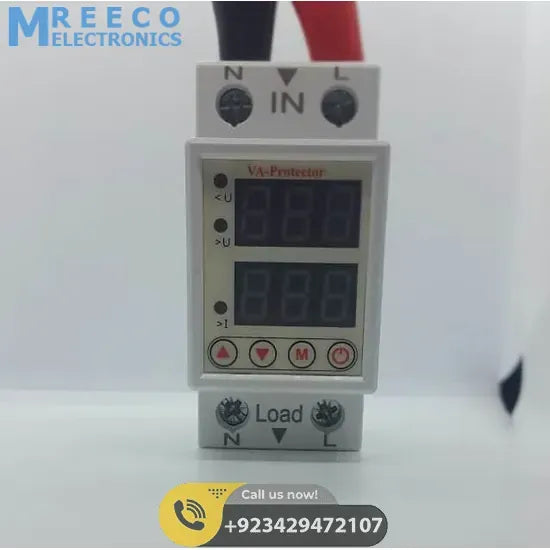

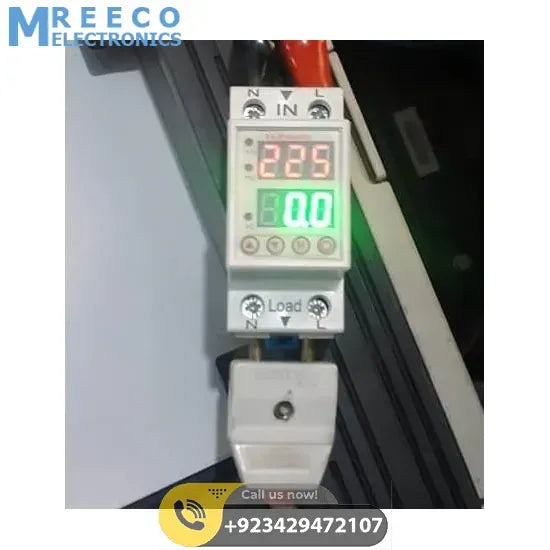

Mora Grand AES Series Voltage Ampere VA Protector

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637738976198773015

Rs.2450 Rs. 3063

A surge protector like this one manufactured by the reputable brand Mora, is an appliance or device designed to protect electrical devices from voltage spikes as well as current spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.

Specifications Of Unver Over Relay:

  1. Rated working current: 40A
  2. Overvoltage protection value: AC 230V - AC 275V ; Factory default 275V
  3. Undervoltage protection value: AC 160V - AC 220V; Factory default 175V
  4. Automatic closing delay: 0-30 seconds; Factory default 30 seconds
  5. Over-current protection value: 0-40A; Factory default 40A
  6. Display range of effective voltage 70-400V
  7. Display range of effective current 0-99.9A
  8. Withstand lightning surge voltage in the range of 5kV
  9. 8 modular contour design and guide-rail mounting
  10. Rated working voltage: AC 230V, 50Hz
  11. Maximum short circuit withstand current: 3000A below 40A, 4500A above 50A (action time 10ms)
  12. Action time: 0-30 seconds; Factory default 30 seconds
  13. Own power consumption <1.5 watt
  14. Motor Mechanical life: > 100,000 times
  15. Dimensions: 80 x 37 x 66 mm (L x W xH)
  16. Ambient temperature = standard
  17. Working environment temperature range: -25 C ~ 55 C
  18. Relative humidity: 45 - 90% RH: 40 C
  19. Latitude: <2000m
  20. Pollution level: 2 class

Package includes:

  • 1x Surge VA-protector
