Original Sharp PC817 Optocoupler

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720688988981297

Rs.30 Rs. 38

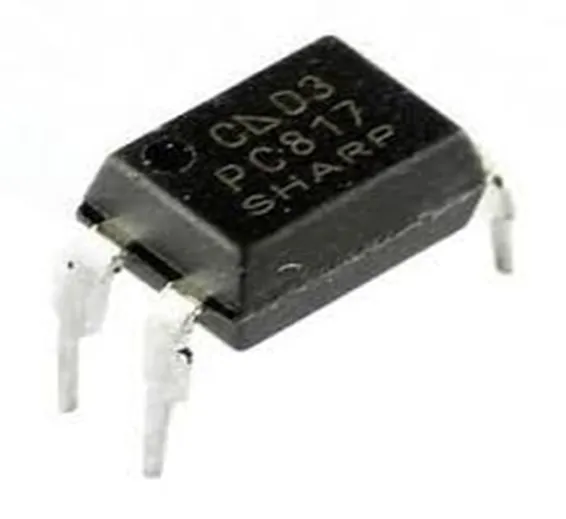

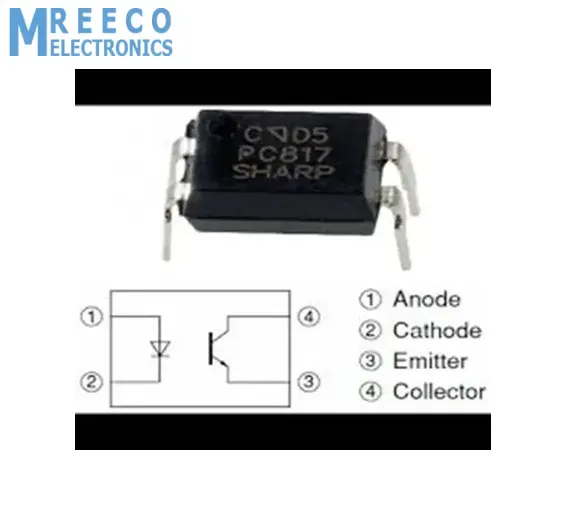

PC817 Series contains an IRED optically coplied to a phototransistor.PC817 have package in a 4pin DIP,available in wide-lead spacing option and SMT gullwing lead-form option.input-output isolationvoltage(rms)is 5.0kV.collector-emmiter voltage is 80V(*) and CTR is 50% to 600% at input current of 5mA.

Link For Datasheet : https://assets.componentsense.com/images/pdfs/1105_11_2b6b5101dbf84df6ef010e5d55e70e60.pdf

PC817 Optocoupler Features and Specifications:

  1. Input Diode Forward Voltage: 1.25V
  2. Collector-Emitter Voltage: 80V (max)
  3. Collector Current: 50mA (max)
  4. Cut-off frequency: 80 kHz
  5. Rise Time: 18us
  6. Fall Time: 18us
  7. Available as 4-pin DIP through-hole and also as SMT package.

Applications Of PC817;

  1. Electrical Isolation circuits
  2. The microcontroller I/O switching circuits
  3. Signal isolation
  4. Noise coupling circuits
  5. Isolation digital from analog circuits
  6. Ac/DC Power control

Package Include

1 x PC817 Optocoupler ic
