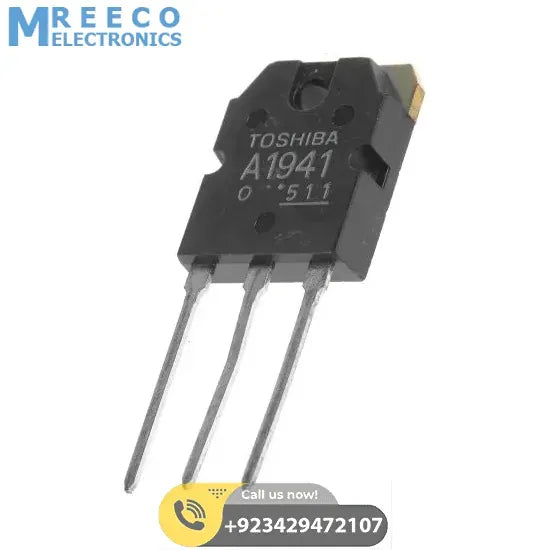

PNP Power Transistor Toshiba A1941

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720658728949590

Rs.150 Rs. 188

The power transistor is a three-terminal semiconductor device used to amplify and switch electronic signals and electrical power. It is a junction transistor designed to handle high current and power; used chiefly in audio and switching circuits.

Specifications:

  1. Polarity: PNP
  2. Pins: 3
  3. Material: Silicon
  4. Maximum Collector Power Dissipation (Pc): 100 W
  5. Maximum Collector-
    1. Base
    2. Voltage |Vcb|: -140 V
    3. Maximum Collector-
    4. Emitter
    Voltage |Vce|: -140 V
  6. Maximum
  7. Emitter
-
  1. Base
  2. Voltage |Veb|: -5 V
  3. Maximum Collector Current |Ic max|: -10 A
  4. Max. Operating Junction Temperature (Tj): 150 °C
  5. Transition Frequency (ft): 30 MHz
  6. Collector Capacitance (Cc): 480 pF
  7. Forward Current Transfer Ratio (hFE), MIN: 55

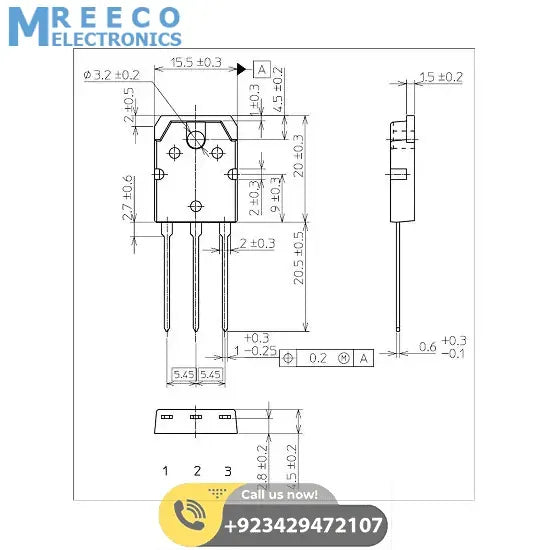

  8. Dimension: 15.5×20.0×4.5

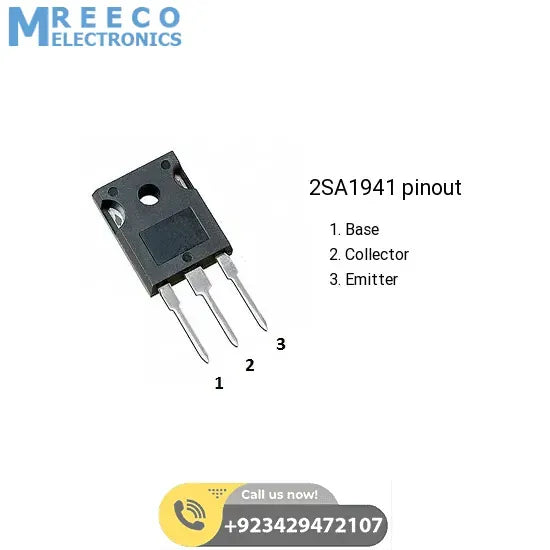

Pin Configuration:

  1. Base
  2. collector
  3. Emitter

Datasheet:

Transistor A1941 Datasheet

Buy High Power Transistor Toshiba A1941 at Pakistan's Best Online Store at cheap price. Here you get a variety of High-speed switching Transistors. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Include:

1x Power Transistor Toshiba A1941
