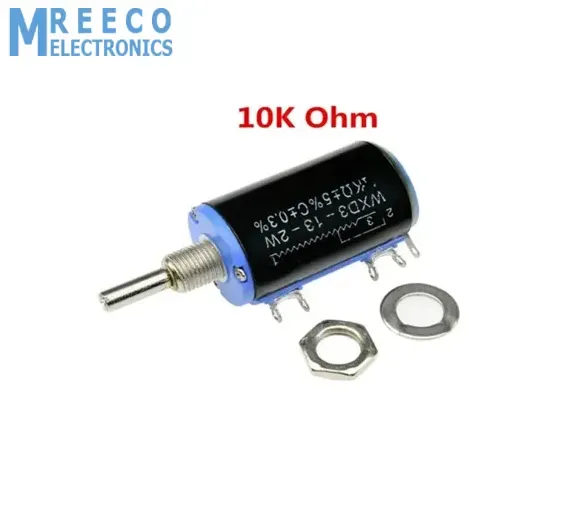

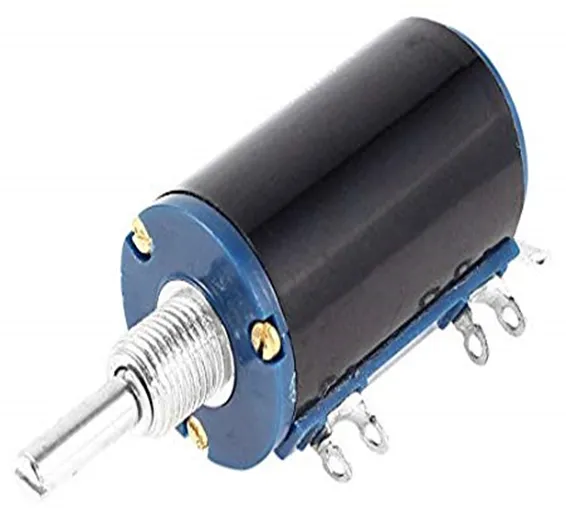

Sourcing Map WXD3-13-2W-10K ohm 2W 4mm Shaft Multi Turn Rotary Wire Wound Potentiometer

Wirewound Resistor

The resistive element exists out of an insulated metallic wire that is winded around a core of non-conductive material. The wire material has a high resistivity and is usually made of an alloy such as Nickel-chromium (Nichrome) or a copper-nickel-manganese alloy called Manganin

Features:

1. 2W Rated Power
2. 10 K ohm Resistance
3. 5% Tolerance
4. Potentiometer.

Specification:

1. Product Name : Wire Wound Potentiometer;
2. Model : WXD3-13-2W-10K;
3. Technology : Wire Wound
4. Terminal Number :
5. Rated Power : 2W;
6. Resistance Value : 10K ohm
7. Tolerance : ±5%; Body Size : 37 x 20mm / 1. 5" x 0. 8"(L * D); Screw Thread Dia. : 8mm / 0. 31"
8. Shaft Diameter : 4mm / 0. 16"
9. Shaft Length : 12mm/0. 47"
10. Total Length : 58mm/ 2. 3"

Package Includes:

• 1 x Sourcing Map WXD3-13-2W-10K ohm 2W 4mm Shaft Multi-Turn Rotary Wire Wound Potentiometer

• SKU: 637721591170835768
• /
• Category: Car Electronics
• /
• Tags: Sourcing Map WXD3-13-2W-10K ohm 2W 4mm Shaft Multi Turn Rotary Wire Wound Potentiometer
