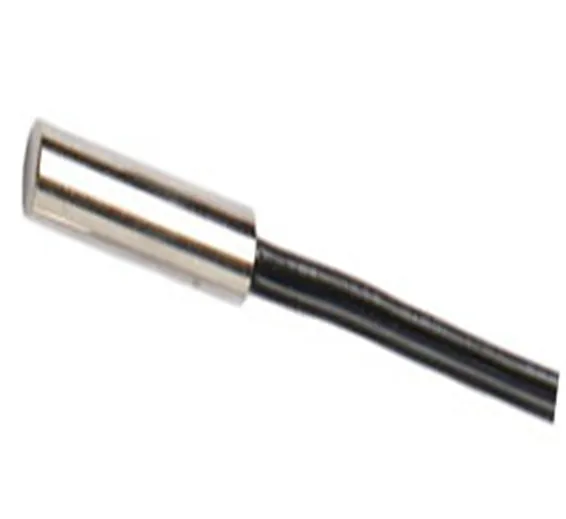

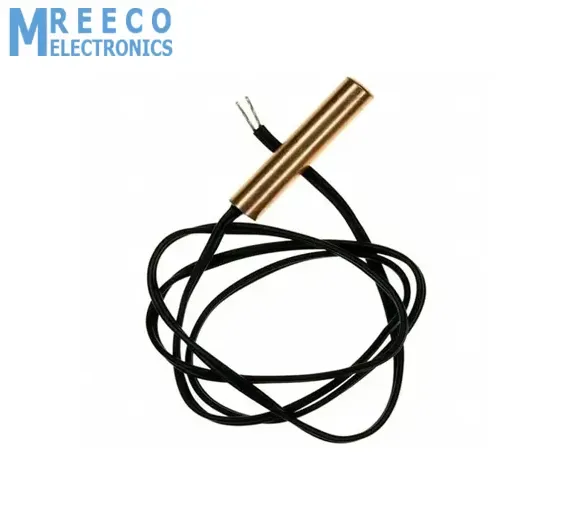

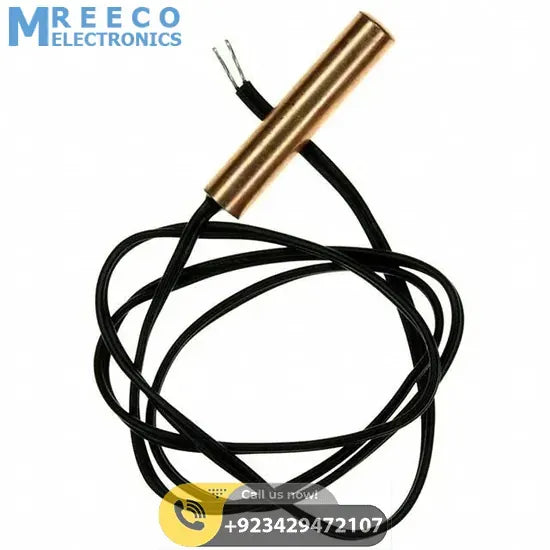

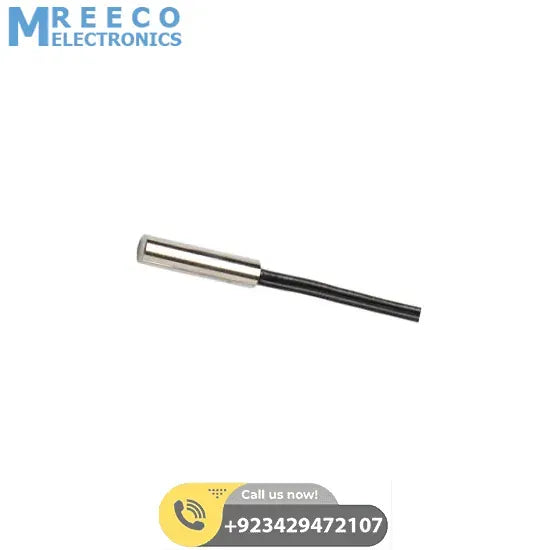

Thermistor NTC 10K Accuracy 1% Waterproof Probe

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720661709164028

Rs.150 Rs. 188

NTC 100k±1% 3950 Temperature Sensor Probe Thermometer (25mm) Waterproof, Thermistor NTC 10K Accuracy 1% Waterproof Probe, Temperature Sensor Probe Thermometer, NTC 100k±1% 3950, Thermistor NTC 10K Accuracy 1%.

Specifications:

Stainless steel sheath and waterproof

  1. Measurement range: -20 to 105 °C

  • Length of wire: 8 inches approximately.
  • Size of probe: 5 x 25 mm
  • Output: 2 wires
  • Type: NTC 10k±1% 3950
  • Measure environmental temperatures using Arduino ADC and this 10K NTC
  • Resistance to temperature conversion table
  • B-constant : 3380K -/ 1%
  • Typical Dissipation Constant 5mW/ °C
  • Probe insulation: >100MOhm
  • Peak Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
  • Stress sustain: 9.8N (1kgF) for 1 minute no deformation
  • Note:

    Pictures shown above are just for representational purpose, and the length of the wire, connector endpoint, etc. keepson changing. But it will have still the same functionality as a 10K Waterproof NTC probe.
