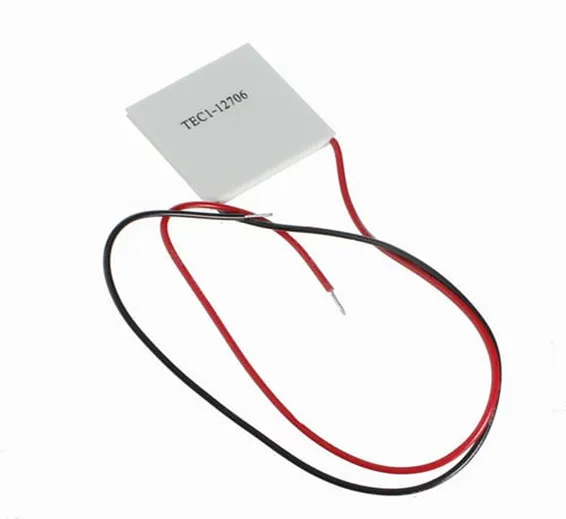

Thermoelectric Cooler Peltier Module TEC1-12706 12VDC 6A Cooling Refrigeration Plate

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718947517266371

Rs.550 Rs. 688

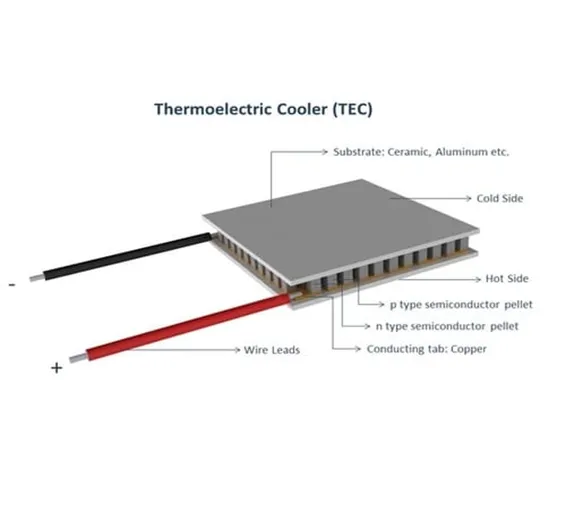

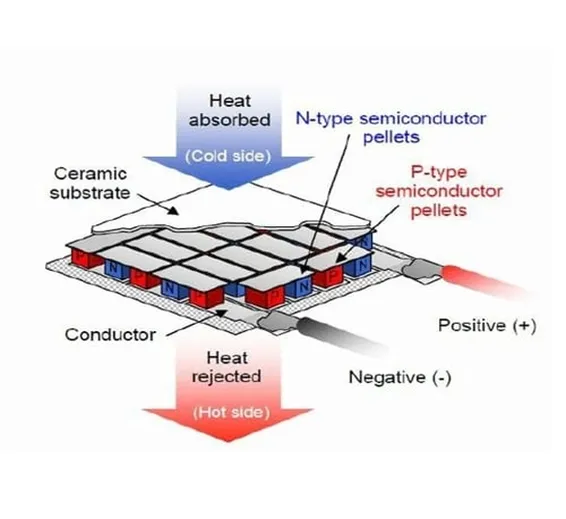

thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying a dc power source to a tec, heat will be transferred from one side of the module to the other. It creates a cold and hot side. Using this TEC TEC1-12706 Thermoelectric cooler or thermoelectric Peltier get ice cold in minutes or heat to boiling by simply reversing the polarity.TEC12706 Cooling refrigeration Plate used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts. These devices must be used in conjunction with a heat sink water block to avoid burned one side is cooling (Printed model number)and another side is heating (Printed no word) when working. Please radiating the heating side


Power on the device only with the proper heat-sink setup to avoid any burning/damage or malfunction of the device, use a fine heat sink (such as in CPU fans) with thermal paste, and power the device. Use a 12v dc power supply to power the tec1-12706. Use one aa battery for 10- 20 seconds to power on the device to find the hot /cold side

Features Of TEC1-12706 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt 50-60 Watt:

  • Ceramics thermoelectric Cooler semiconductor module TEC1-12706
  • Small module.
  • Its work is characterized by side refrigeration and side fever.
  • Hot and cold on both sides of the temperature difference of 68 degrees
  • Connected to the 12-volt power supply cooling piece on both sides there will be the difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise, it will cause cooler internal overheating and burning.
  • Quality tested cooling cells.
  • Solid-state, vibration-free, noise-free.
  • Simple to install and operate.
  • Fitted with 6-inch insulated leads

Specifications Of 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module:

  • Chip model: TEC1-12706

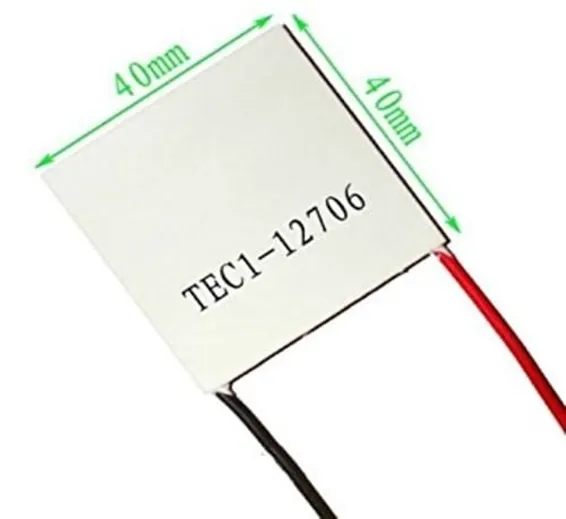

  • Dimensions: 40x40x3.3mm component logarithm 127
  • Wire size: lead length 300±5mm RV standard wire single head 5mm tinned
  • Maximum temperature difference: Tmax (Qc = 0) 68 °C or more.
  • Working current: Imax=4.4-6A
  • Rated voltage: DC12V (Vmax: 15.5V)
  • Cooling power: Qcmax 50-60W
  • Assembly pressure: 85N/cm2
  • Working environment: Temperature range -55 °C ~ 83 °C (excessive ambient temperature will directly affect cooling efficiency)
  • Packaging process: four weeks standard 704 silicone rubber seal
  • Packing standard: foam box packaging, storage conditions, ambient temperature -10°C ~ 40°C
  • Storage conditions: -40~60°C

Package Include:

  • 1 x TEC1-12706 Peltier Module
