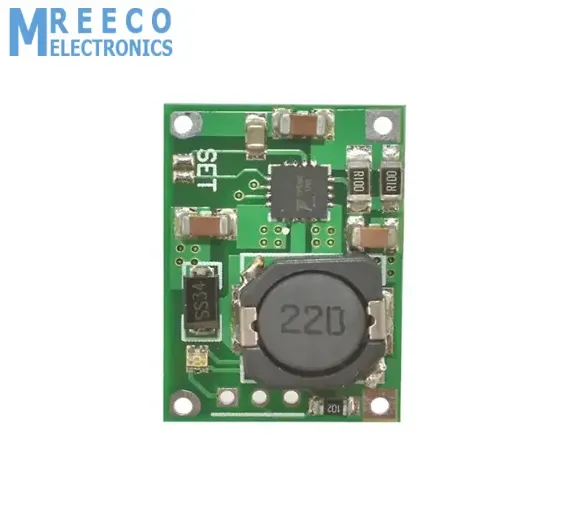

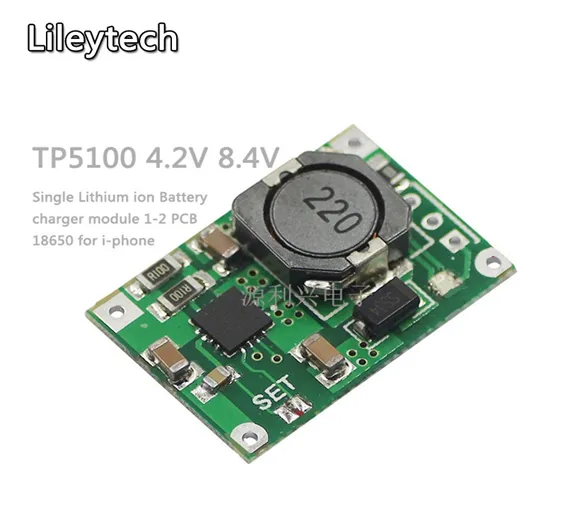

HW-370 TP5100 2A Li Ion Battery Charger Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637736317372932593

Rs.175 Rs. 219

TP5100,TP5100 module ,TP5100 charger or TP5100 charger module is 2A Lithium-Ion 18650 Battery Charger Module is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. TP5100,TP5100 module ,TP5100 charger or TP5100 charger module is ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.

TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.

Features:

  1. Double 8.4v / 4.2v lithium rechargeable single
  2. Programmable charge current. 0. 1A-2A
  3. Programmable steady precharge current 10% -100%
  4. Wide operating voltage, maximum reach I8V
  5. Red and green LED charge status indicator
  6. Chip temperature protection, overcurrent protection, undervoltage protection
  7. Battery temperature protection, reverse battery shutdown, short circuit protection
  8. Switching frequency 400Khz, usable inductance 20uH and more
  9. PWR_ON Power battery for switching control

Maximum Ratings:

  1. Static input supply voltage (VlN): 20V
  2. BAI: -8.4V-20V
  3. BAT Short-Circuit Duration: Continuous
  4. Operating environment Temperature range: -40 ° -85 °
  5. Storage temperature range: -65 ° – 125 °

Application:

  1. Portable equipment, various chargers
  2. Smartphone, PDA, mobile cellular telephone
  3. MP4, MP5 players, tablets
  4. HM
  5. Power Tools
  6. Walkie-talkie

Specification:

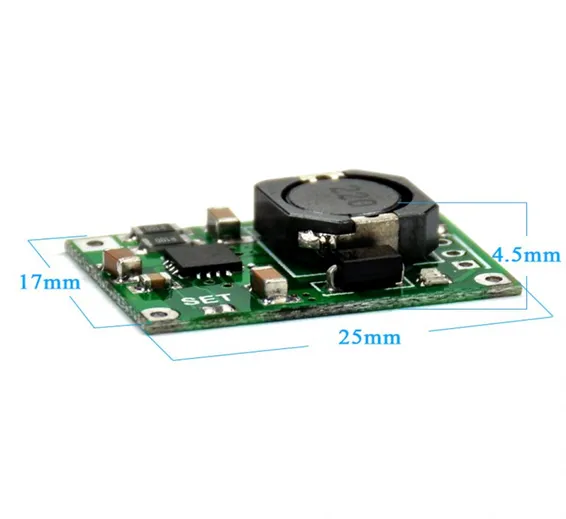

  1. Size: 25 * 17 * 5mm ultra-small size
  2. Input voltage: 5-18V DC power supply

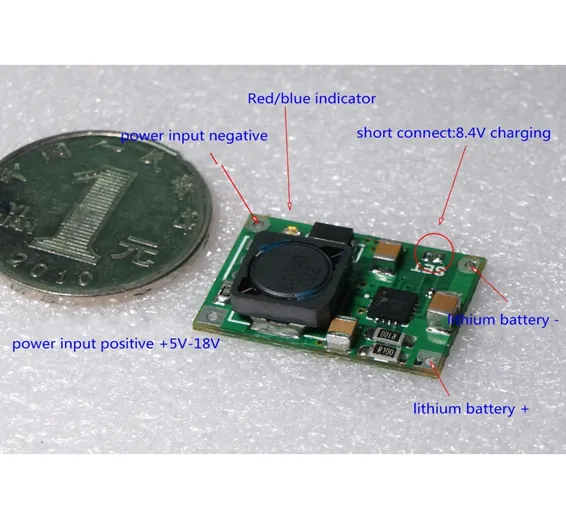

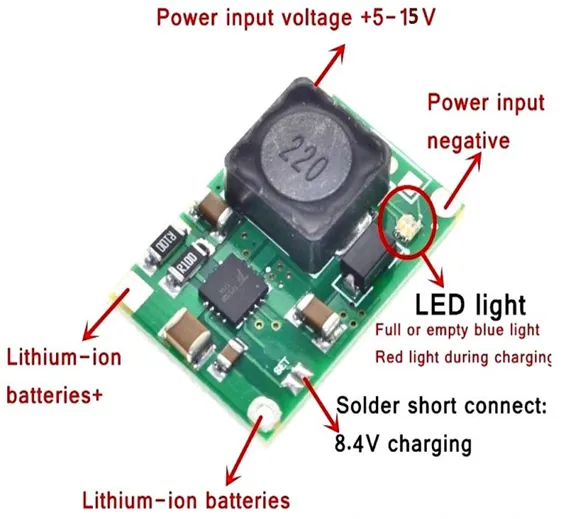

  3. Charge status: full and unloaded blue lights, charging red.
