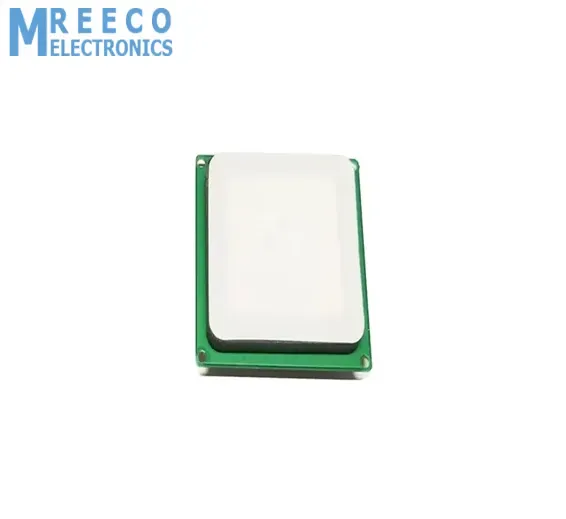

UHF RFID JRD-4035 Reader with Integrated Antenna Module for long range 1.5 meter to 2 meter in Pakistan

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637725016224833546

Rs.8000 Rs. 10000
JRD-4035 module is a mid-range and short-range UHF low-power embedded read-write module. The ceramic dielectric antenna is integrated with the read-write module, which completely eliminates the technology brought to the user by the need for an additional antenna for the ordinary UHF module. Uncertainty, without the need for any preliminary scheduling by the user, the module can work stably, which is true PLUG & PLAY. Simple external interface conversion can realize USB, Bluetooth, WIFI and other connection methods. The integrated design realizes the miniaturization and low cost of the module; the optimized RF design realizes the low power consumption and high performance of the module, and the transmission distance of the only 100MW can reach an effective distance of more than 1.5M.

PIN definition

  1. GND ground
  2. EN high enable module (>1.5
  3. RXD TTL level (3.3V)
  4. TXD TTL level (3.3V)
  5. VCC power supply (3-5V)
Features:
  1. The label is sensitive and stable.
  2. The stable recognition distance is 1.5-2 meters.
  3. Multi-tag recognition performance: >50 labels
  4. Label recognition speed: >50 sheets/second.
  5. No external heat sink is required.
  6. Long-term continuous full-load operation at room temperature does not cause heat.
  7. Continuous current <200mA @ 3.5V (26 dBm Output).
  8. Peak pulse current <260mA.
  9. Work 24 hours x 365 days without crashing.
  10. The performance is affected by external influences such as the outer casing and the electromagnetic environment.
  11. Wide temperature design, low-temperature drift coefficient.
  12. A model of consistent design.
  13. All components of the highest grade are selected to ensure stable and consistent parameters.
Specifications:

Sleep state current

<100uA (EN pin low level)
  • Operating current 180mA @ 3.5V (26 dBm Output, 25°C).
  • 110mA @ 3.5V (18 dBm Output, 25°C).
  • Start time <100mS.
  • Operating temperature

    - 20 °C - + 70 °C
  • Storage temperature - 20 °C - + 85 °C
  • Operating humidity < 95% ( + 25 °C)
  • Air Interface Protocol

    EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

    Working spectrum range

    840-960MHZ

    Output power range

    18-26 dBm

    Output power accuracy

    +/- 1dB

    Output power flatness

    +/- 0.2dB

  • Receive sensitivity < -70dBm
  • Inventory label peak speed > 50 sheets / sec
  • Tag Cache 200 Labels @ 96 bit EPC
  • Label RSSI

    support

  • Communication Interface
  • TTL Uart interface
  • Communication baud rate

    115200 bps (default and recommended)

  • 38400bps
  • Cooling method

    Air cooling (no external heat sink required)

    Table 1: Overview of integrated antenna characteristics

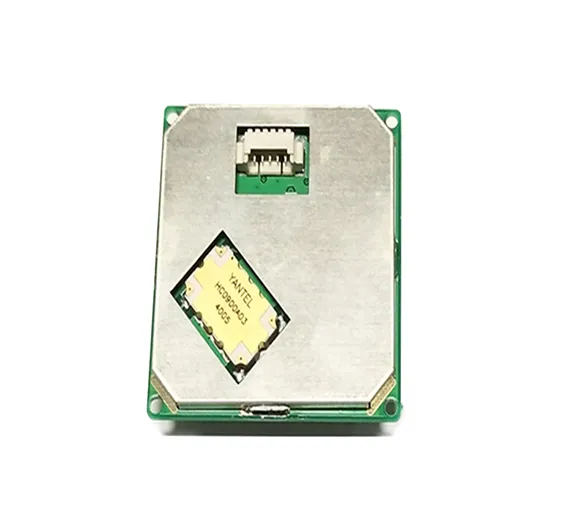

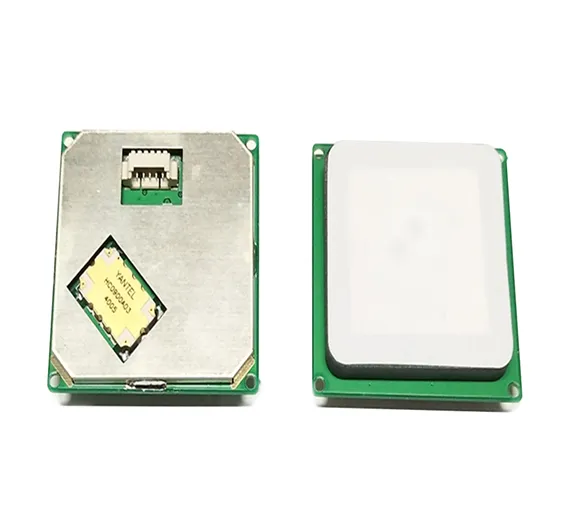

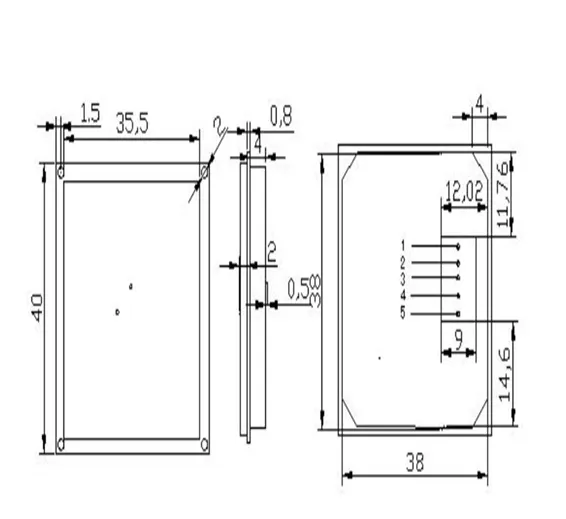

    product name UHF RFID module antenna integrated total measurement 40x40x8.5mm (ceramic antenna size is 35x35x4mm, pcb board size is 40x40mm) Application occasion Solutions for mobile devices, handsets, tablets, small readers, fixed card readers, etc. support system

    Android and Windows

    Provide SDK package for secondary development

    Excellent label reading performance

    ◆ Label identification is sensitive and stable.

    ◆ Stable recognition distance is 1.5-2 meters. (9662 white card)

    ◆ Multi-label recognition performance: > 50 labels.

    ◆ Label recognition speed:

    > 50 sheets / second

    .

    Completely solve the problem of fever

    ◆ No external cooling device is required.

    ◆ It can work continuously for a long time at room temperature without heating.

    ◆ Continuous current <200mA @ 3.5V (26 dBm Output) .

    ◆ Peak pulse current <260mA .

    Excellent stability

    ◆ 24 hours x 365 days work without crash.

    ◆ Performance is less affected by external influences such as the shell and electromagnetic environment.

    ◆ Wide temperature design with extremely low temperature drift coefficient.

    Excellent consistency

    ◆ A model for consistent design.

    ◆ All the highest-level components are selected to ensure the stability and consistency of various parameters.

    Simple and efficient software and hardware interface

    ◆ The peripheral circuit is extremely simple, single power supply, no external tantalum capacitor is needed. (See Figure 1 : Reference Design Circuit).

    installation method

    ◆ Support 5pin WAFER installation.

    Table 2: Electrical parameters

    Operating Voltage

    DC 3.5V – 5 V

    Standby current

    <80mA (EN pin high level )

    Sleep state current

    <100uA (EN pin low level )

    Working current

    180mA @ 3.5V (26 dBm Output , 25 ° C) .

    110mA @ 3.5V (18 dBm Output, 25 ° C) .

    Start Time

    <100mS .

    Operating temperature

    -20 ° C-+ 70 ° C

    storage temperature

    -20 ° C-+ 85 ° C

    Working humidity

    <95% (+ 25 ° C)

    Air interface protocol

    EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

    Operating spectrum range

    840-960MHZ

    Work area support

    US, Canada and other regions following US FCC

    Europe and other regions following ETSI EN 302 208

    Mainland China

    Japan

    Korea

    Malaysia

    Taiwan

    Output power range

    18-26 dBm

    Output power accuracy

    +/- 1dB

    Output power flatness

    +/- 0.2dB

    Receiving sensitivity

    <-70dBm

    Peak inventory speed

    > 50 sheets / second

    Tag buffer

    200 tags @ 96 bit EPC

    Label RSSI

    stand by

  • Communication Interface
  • TTL Uart interface
  • Communication baud rate

    115200 bps (default and recommended)

  • 38400bps
  • Cooling method

    Air cooling (no external heat sink required)
