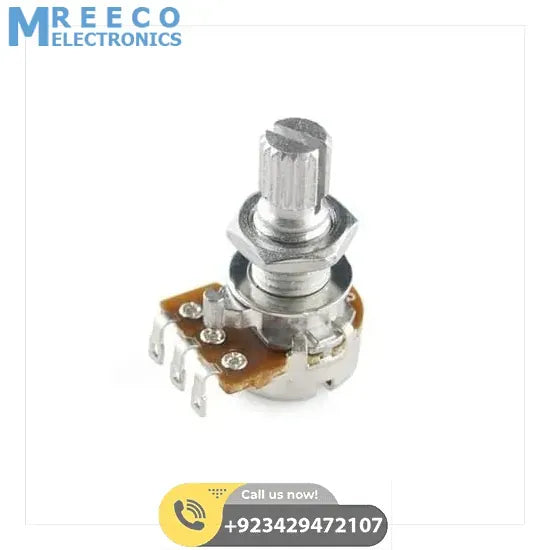

Volume Type Variable Resistor Rotary Potentiometer is the most significant component. Volume Type Variable Resistor Rotary Potentiometer is found in many electrical devices for controlling the tone, bass as well as volume. This is due to the fact that resistors can be connected together with the other components to form filters for the desired level. They can also be used in computer monitors for colour or positioning as well as dimming or switching lamps. This is achieved through digital to analogue and analogue to digital circuits; one additional advantage is that the knob can be turned instead of typing a value every time you want to change the tint or brightness.
A variable resistor is a resistor in which the electric resistance value is adjustable. A variable resistor is an electromechanical transducer that generally works by sliding a contact (wiper) over a resistive element. A variable resistor is used because a potential divider with 3 terminals is known as a potentiometer. When it has two terminals, it acts as a variable resistor, which is known as a Rheostat. An electronically controlled variable resistor controls electronically instead of using mechanical action. This resistor is called a digital potentiometer.
We have also Dual Volume Type Variable Resistor, RM065 Variable Resistor etc.
Features of Volume Type Variable Resistor Rotary Potentiometer:
- Top adjustment type and knurled shaft for easy operate in the daily use time.
- Main used to control electrical devices such as volume controls on audio equipment.
- Knurled shaft with split design for push-on knob.
- PCB Mounted
- Breadboard Friendly
- Single and dual section control
- Metal shaft styles
- Carbon element
- Center and multiple detent options
- Wide range of resistance taper
Specifications of Volume Type Variable Resistor Rotary Potentiometer:
- Material: Metal Electronic Parts
- 100,000 Cycle Life
- Rotational travel: 300 °
- Static Stop Strength: 90 oz-in
- Rotational Torque: 0.5 to 1.25 oz-in
- Tolerance: 20%
1 x Volume Type Variable Resistor Rotary Potentiometer
