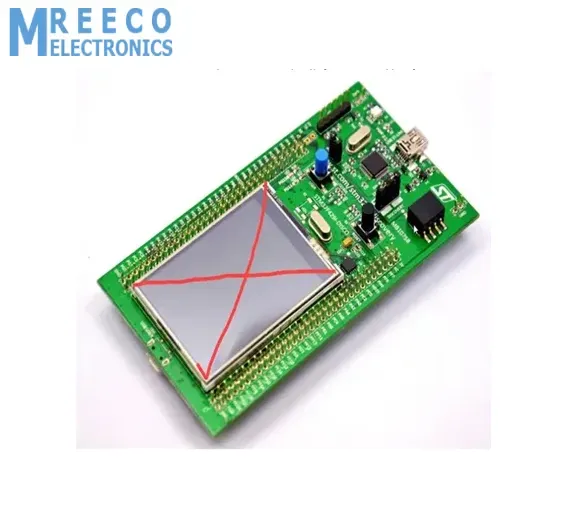

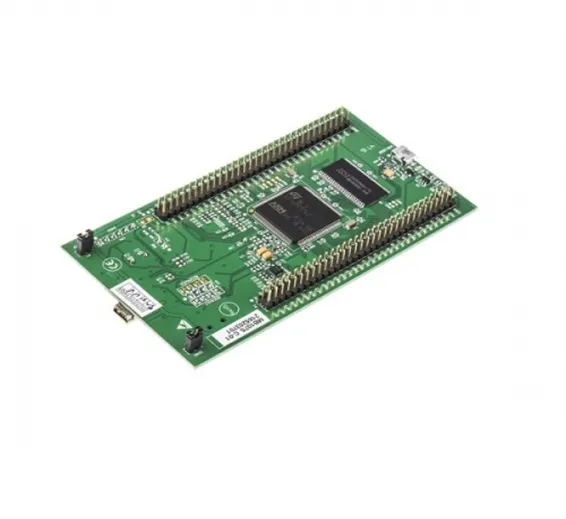

Without LCD Display STM32F429 439 Arm Cortex M4 Development Kit

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637731251887162995

Rs.5000 Rs. 6250

STM32F429I-DISC1 How can I program a popular microcontroller of the STM32F4 series? You can learn it with the help of the STM32F429-Discovery and realize own applications. An introduction in the ARM technology with modern touch display makes it possible for newcomers and professionals. The STM32F429/439 discovery uses the ARM Cortex M4 controller STM32F429ZIT6 and has included ST-Link/V2 to programme and debug. This microelectronics discovery kit has also a touch graphic LCD, a

  • 3 axes acceleration sensor
  • and gyroscope, an additional SDRAM 64 Mbits for high-definition graphic and a free programable USB connect.

    Properties Of STM32F4 High-Performance Cortex M4:

    1. microcontroller STM32F429ZIT6 (144 pins) with
      1. 32 Bit ARM Cortex-M4 MCU
      2. 180 MHz
      3. 2 MByte flash
      4. 256 KByte RAM
    2. 2.4″ colour touch graphic LCD
      1. 2.4 inches
      2. 240 x 320 pixel, QVGA
      3. illumination
    3. 64 MBit SDRAM
      1. for graphic data with a high colour depth
    4. 3 axes acceleration sensor
      1. = digital gyroscope
    5. 6 LEDs
      1. 1 for USB communication
      2. 1 Power-LED for 3.3 V
      3. 2 for own use
      4. 2 LEDs for USB on-the-go
    6. 2 button
      1. 1 for reset
      2. 1 for own use
    7. programmer onboard

    Functions Of STMicroelectronics Discovery MCU Development Kit:

    • ST-Link/V2 for programming and debugging onboard with the help of a jumper the board also can be used as ST-Link/V2 for programming and debugging external microcontrollers (over SWD-connection)
    • The power supply of the board over USB or external over 3V e.g. 5V
    • 3V and 5V are available for external peripheral equipment
    • Connection external peripheral equipment over USB with micro USB-cable
    • The pins of the microcontroller are outward over multi-pin connectors

    Example Of Use/Tutorials:

    You can find help for the programming of the display in our download-area and in the following tutorials. Please note: The tutorials are only in german.

    • STM32 C++ Tutorial.
    • AVR C++ Tutorial.
    • micro Grafic Library µGL Tutorial.

    Recommendation Of Software:

    Please Attention that SiSy Microcontroller++ is only in German. The substantial range of the function of this board is optimally supported by SiSy Microcontroller++ for the development of own program. SiSy Microcontroller++ is a software package for designing, writing, dating, burning and checking the self-developed program. There are features of an easy development for programming available and it's possible to work with UML. The own work will be optimized with a sample program and integrated facilities. Here you can find continuing information about SiSy Microcontroller++.

    System Requirements For Discovery-Board:

    • PC with Windows XP / 7 / 8
    • Mini USB-cable

    System Requirements For SiSy:

    • PC with Windows 2000 / XP / 2003 / Vista / 7 / 8 / 10
    • (32-bit and 64-bit are supported)

    Package Includes:

    • 1 x STM32F429/439 Arm Cortex M4
