YX5300 MP3 Music Player UART Control Serial Module In Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720618961778155

Rs.550 Rs. 688

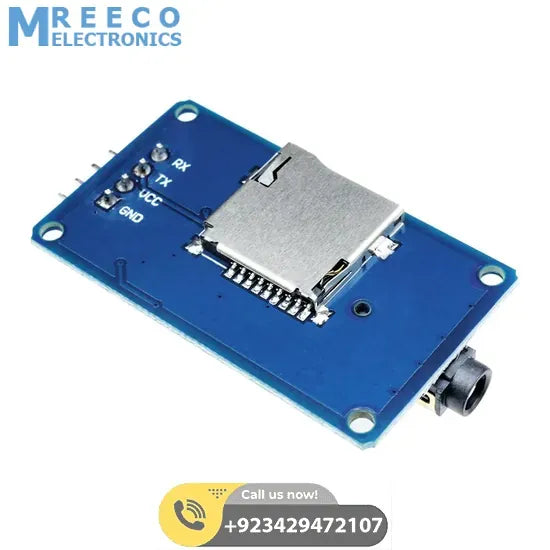

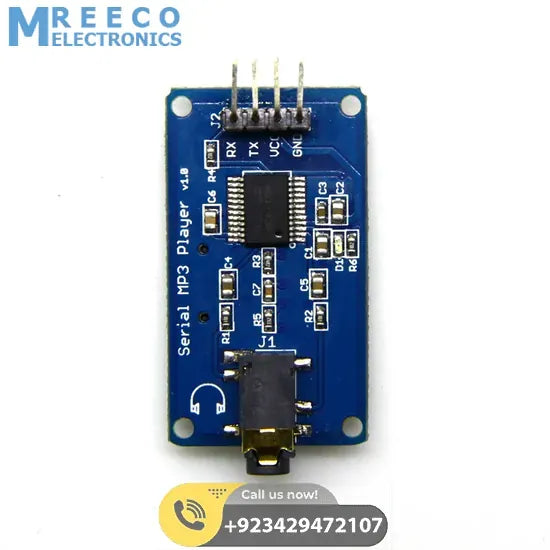

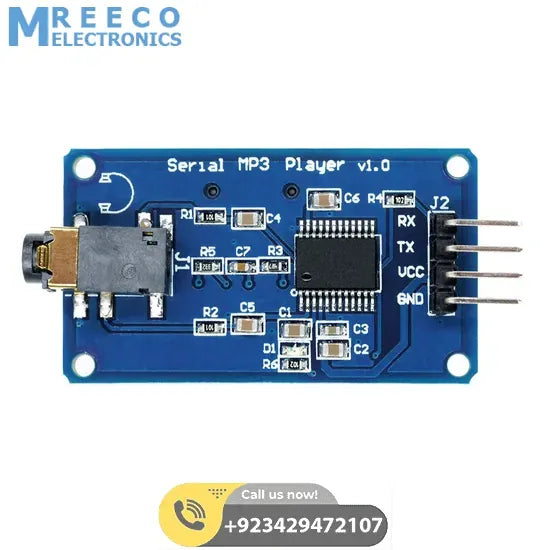

YX5300 UART Control Serial MP3 Music Player Module For Arduino/AVR/ARM/PIC. The module is a kind of simple MP3 player device which is based on a high-quality MP3 audio chip—YX5300. It can support 8k Hz~ 48k Hz sampling frequency MP3 and WAV file formats. There is a TF card socket on board, so you can plug the micro SD card that stores audio files. MCU can control the MP3 playback state by sending commands to the module via UART port, such as switch songs, change the volume and play mode and so on. You can also debug the module via USB to UART module. It is compatible with Arduino/AVR/ARM/PIC.

Features:

  1. Support sampling frequency (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
  2. Support file format: MP3 / WAV
  3. Support Micro SD card, Micro SDHC Card
  4. 30 class adjustable volume
  5. UART TTL serial control playback mode, baud rate is 9600bps
  6. Power supply can be 3.2 ~ 5.2VDC

Instructions/ helpful Code:

Save mp3 files in sd card and here is test code

send + to arduino from serial terminal of arduino for next song and – for previous song.

//www.hallroad.org

// 11-25-16 test code for mp3 module

#include

SoftwareSerial mp3 ( 5 , 6 ) ;//5=rx , 6=tx

static uint8_t cmdbuf[8] =

{

0

}

;

char serial_byte=0;

char song_no=1;

void command(int8_t cmd, int16_t dat)

{

delay(20);

cmdbuf [ 0 ] = 0x7e ; // byte start

cmdbuf [ 1 ] = 0xFF ; // Version

cmdbuf [ 2 ] = 0x06 ; // number of bytes command

cmdbuf [ 3 ] = cmd ; // command

cmdbuf[4] = 0x00; // 0x00 = no feedback, 0x01 = feedback

cmdbuf [ 5 ] = ( int8_t ) ( dat >> 8 ) ; // PARAMETR DAT1

cmdbuf [ 6 ] = ( int8_t ) ( dat ) ; // PARAMETR DAT2

cmdbuf [ 7 ] = 0xef ; // Bajt konczacy

for (uint8_t i = 0; i < 8; i++)

{

mp3.write(cmdbuf[i]);

}

}

void setup()

{

Serial.begin(9600);

mp3.begin(9600);

delay ( 500 ) ; // We look forward to 500ms initialization

command ( 0x09 , 0x0002 ) ; // Select SD card as a source

delay ( 200 ) ; // Czekamu 200ms for initialization

command ( 0x06 , 0x0064 ) ; // Set the volume to 30

command ( 0x03 , song_no );

}

void loop()

{

if(serial_byte==’+’)

{

if(song_no<11)

{

serial_byte=0;song_no++;

command ( 0x03 , song_no );

}

}

else if (serial_byte==’-‘)

{

if(song_no>1)

{

serial_byte=0;song_no–;

command ( 0x03 , song_no );

}

}

}

void serialEvent()

{

if (Serial.available())

{

serial_byte = (char)Serial.read();

if (Serial.available())

char i= Serial.read();

}

}
