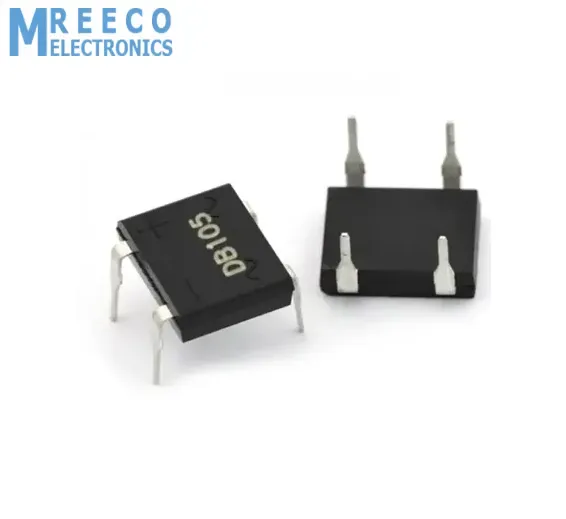

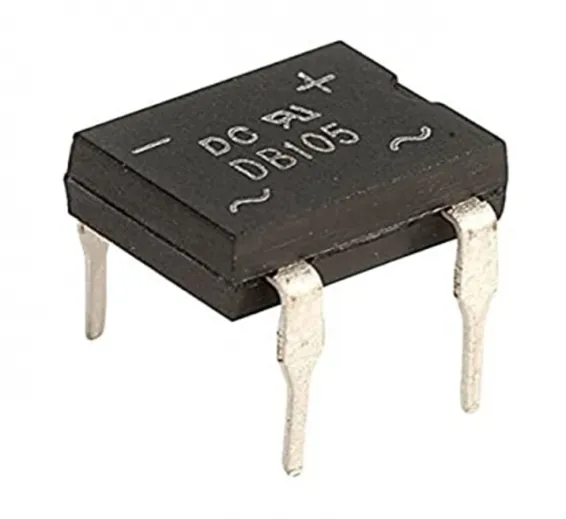

1Amp 1000V Bridge Rectifier IC

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637725006710389810

Rs.10 Rs. 13

1Amp 1000V Bridge Rectifier IC is good for automation insertion surge overload rating. 1-ampere IC rectifier is ideal for printed circuit board reliable low-cost construction utilizing moulded glass passivated device Polarity symbols moulded on body Mounting position. This IC rectifier chip leads solderable per MIL-STD-202 and method 208 guaranteed.

Features Of Single Phase 1Amp Dip Glass Passivated Bridge Rectifier :

  • Good for automation insertion.
  • Surge overload rating – 40 amperes peak.
  • Ideal for the printed circuit board.
  • Reliable low-cost construction utilizing moulded.
  • Glass passivated device.
  • Polarity symbols moulded on the body.
  • * Mounting position: Any.
  • Weight: 1.0 gram.

Specifications Of 1000V IC Bridge Rectifier :

  1. Bridge Type: Single Phase
  2. Peak Average Forward Current: 1A
  3. Peak Reverse Repetitive Voltage: 1000V
  4. Mounting Type: Through Hole
  5. Package-Type: DB
  6. Pin Count: 4
  7. Configuration: Single
  8. Maximum Operating Temperature: 150°C
  9. Minimum Operating Temperature: -55°C
  10. Peak Forward Voltage: 1.1V
  11. Peak Reverse Current: 500uA
  12. Length: 8.8mm
  13. Height: 3.4mm
  14. Junction Capacitance: 25pF
  15. Width: 6.5mm
  16. Dimensions: 8.8 x 6.5 x 3.4mm

Package Includes:

  • 1 x 1Amp 1000V Bridge Rectifier IC (Part no can be changed like DB102, DB103, DB104, DB105 OR ANY OTHER With same technical specs)
