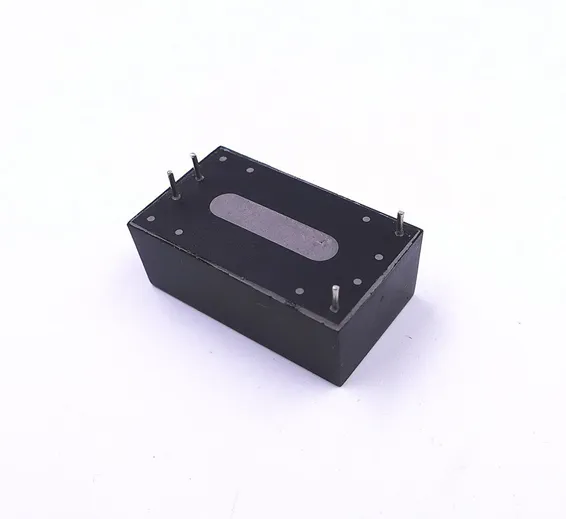

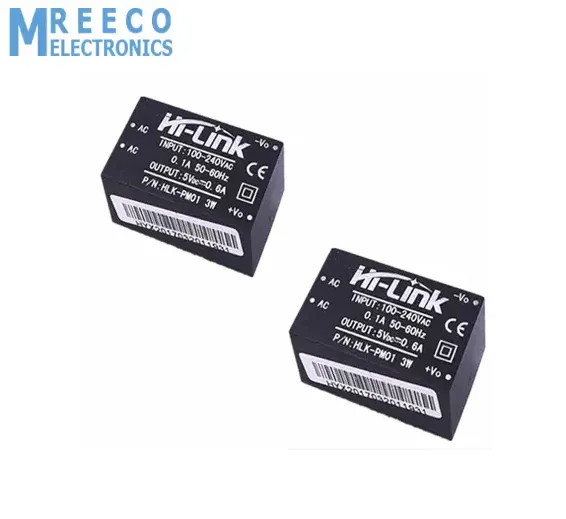

3W HLK-PM01 AC DC 220V To 5V Step Down Power Supply Module Isolated Power Supply Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719016201257300

Rs.800 Rs. 1000

Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of a smart home. Low ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low power consumption. 100% load test.

Features:

  1. Rated input voltage: 100-240 V AC
  2. Input voltage range: 90~264 V AC
  3. Maximum input current: ≤ 0.2 A
  4. Input inrush current: ≤ 10 A
  5. Maximum input voltage: ≤ 270 V AC
  6. Input slow start: ≤ 50 mS
  7. Input low voltage efficiency: Vin = 110V AC, the output full load ≥ 69 %
  8. Input high voltage efficiency: Vin = 220VAc, the output full load ≥ 70 %
  9. Long term reliability: MTBF ≥ 100,000 H
  10. No-load rated output voltage: 5 ± 0.1 V DC
  11. Full load rated output voltage: 5 ± 0.2 V DC
  12. Short time maximum output current: ≥ 1000 MA
  13. Long time maximum output current: ≥ 600 MA
  14. Voltage regulation: ± 0.2%
  15. Load Regulation: ± 0.5%
  16. Output ripple and noise: (MVp-p) ≤ 50 MV. -- Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, the load side is tested with 10uF and 0.1uF capacitors.

Specifications:

  1. Switch machine overshoot: (Rated input voltage, output plus 10% load) ≤ 5% VO
  2. Output over-current protection -- Output the maximum load of 150-200% A
  3. Output short circuit protection.
  4. High efficiency, high power density
  5. The product is designed to meet the requirements of EMC and Safety Test

Notes:

  1. Temperature rise rule:
  2. At room temperature, the power supply capacitor, the main transformer and other internal surface temperature rise cannot exceed 90 ℃;
  3. Shell surface temperature rise cannot exceed 60 ℃;

Package Includes:

  • 1x HLK-PM01 AC DC 220V to 5V Step-Down Power Supply Module Isolated Power Supply Module
