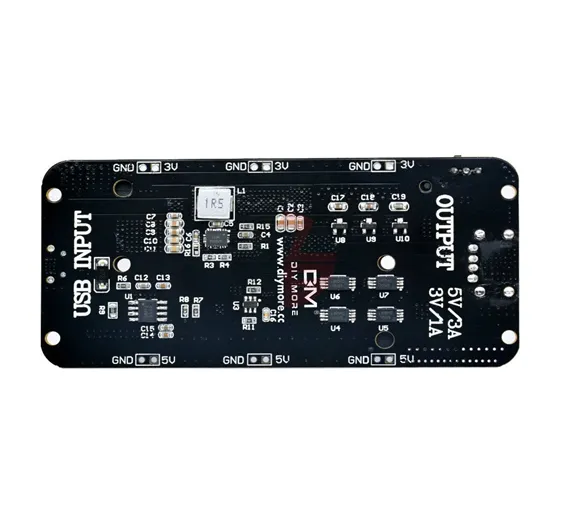

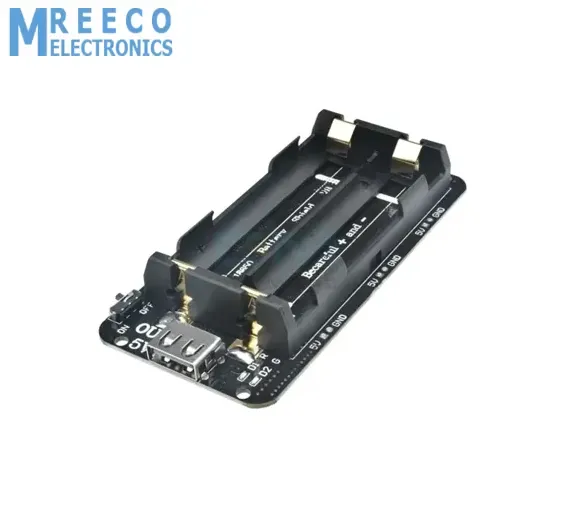

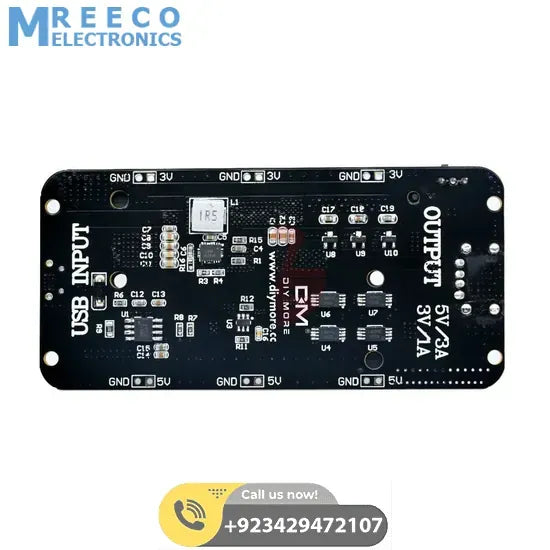

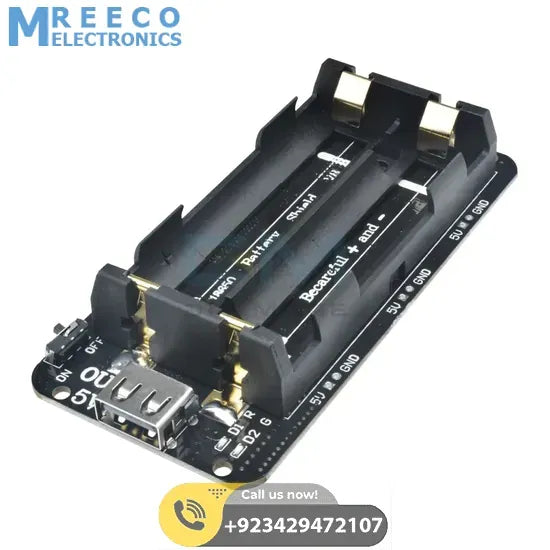

5V UPS Arduino Raspberry Pi Battery Shield

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720661579216321

Rs.1050 Rs. 1313

This module is a portable mobile power supply that supports 3V,1A, and 5V, 3A two voltage outputs!. 5V voltage output rated current is 2.2A, maximum support 3A current (not recommended for overload, easy to damage the module, speed up the service life), the output of current depends on the quality of the 18650 battery!

Typical usage:

  1. It is also typically used as a V8 Mobile Power Expansion Board Module.
  2. Commonly known as Micro USB charger For Arduino ESP32 or ESP8266
  3. Power source for Arduino ESP8266

MICRO USB charging current 600mA-800mA:

Supports up to two 18650 batteries. It is recommended to use two 18650 batteries, which can be longer!

Special attention: the installation of the battery must be determined positive and negative, the board has been clearly marked positive and negative! Installation errors will burn out the module!

Package Includes:

  • 1x Mobile Power Supply Micro USB 18650 Battery Shield V8 3V/5V for Arduino Raspberry Pi
