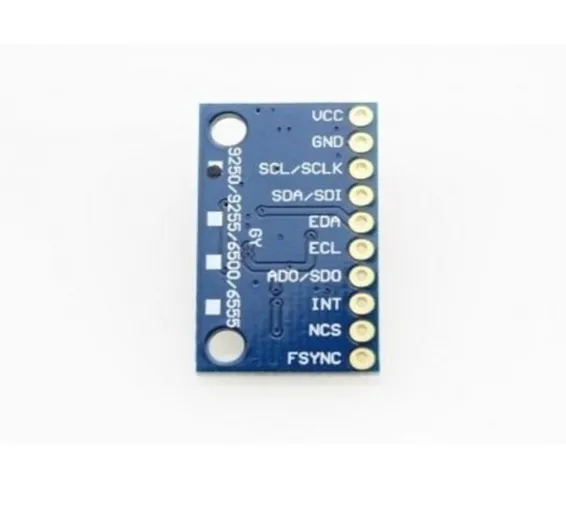

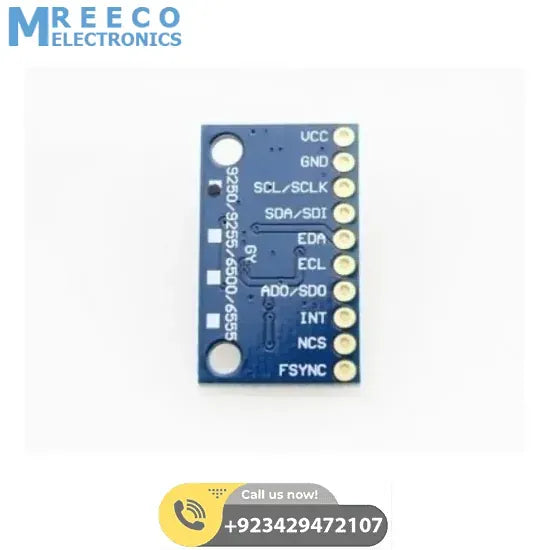

9DOF 9 Axis Accelerometer Gyroscope Magnetometer Module MPU9250

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720655737307863

Rs.1200 Rs. 1500

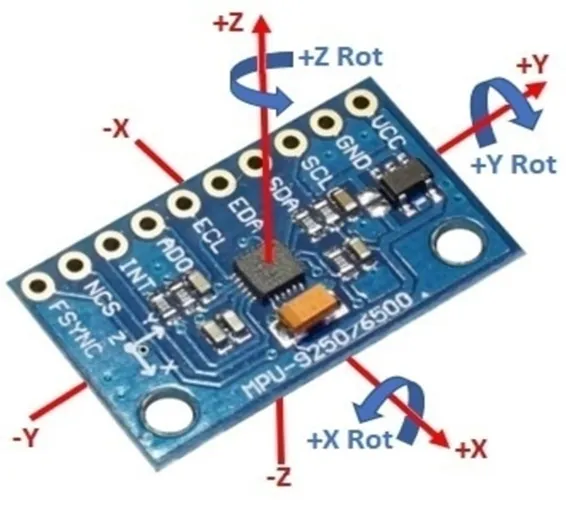

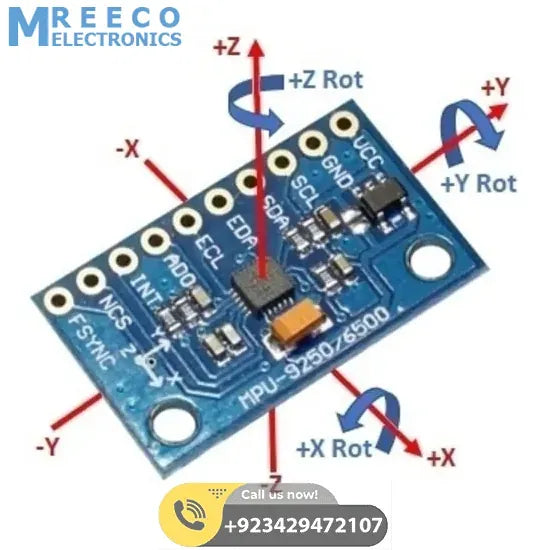

The MPU9250 magnetometer accelerometer is the second generation. This MPU-9250 Arduino is a 9-axis motion tracking device for smartphones, tablets, wearable sensors, and other consumer markets. The MPU-9250 gyroscope module, 9-axis motion tracking device incorporates the latest InvenSense design innovations, enabling dramatically reduced chip size and power consumption, while at the same time improving performance and cost.

Features Of MPU9250 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module:

  • Auxiliary master I2 C bus for reading data from external sensors (e.g. pressure sensor).
  • 3.5mA operating current when all 9 motion sensing axes and the DMP are enabled.
  • VDDIO reference voltage for auxiliary I 2 C devices.
  • Smallest and thinnest QFN package for portable devices: 3x3x1mm.
  • Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes.
  • 512 byte FIFO buffer enables the applications processor to read the data in bursts.
  • Digital-output temperature sensor.
  • User-programmable digital filters for gyroscope, accelerometer, and temp sensor.
  • 10,000 g shock tolerant.
  • 400kHz Fast Mode I2 C for communicating with all registers.

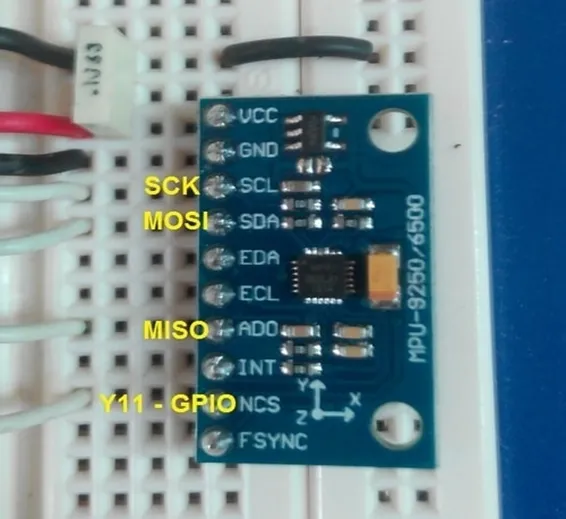

  • 1MHz SPI serial interface for communicating with all registers.

Specifications Of 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor Module:

  1. Chip: MPU-9250
  2. Power supply: 3-5V ( internal low dropout regulator )
  3. Communication: standard IIC communication protocol Chip 16bit AD converter, 16 outputs the data
  4. Header pitch: 2.54mm
  5. Module size: 15mm x 25mm
  6. Using Immersion Gold PCB, machine soldering process to ensure quality


  • TouchAnywhere™ technology (for “no-touch” UI Application Control/Navigation).
  • MotionCommand™ technology (for Gesture Short-cuts).
  • Motion-enabled game and application framework.
  • Location-based services, points of interest, and dead reckoning.
  • Handset and portable gaming.
  • Motion-based game controllers.
  • 3D remote controls for Internet-connected TVs and set-top boxes, 3D mice.
  • Wearable sensors for health, fitness and sports.

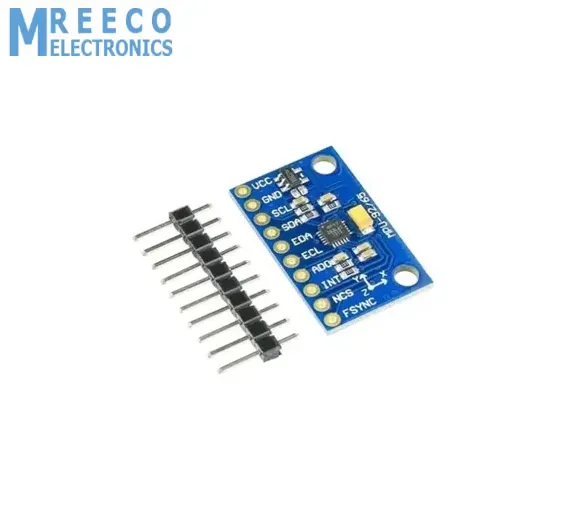

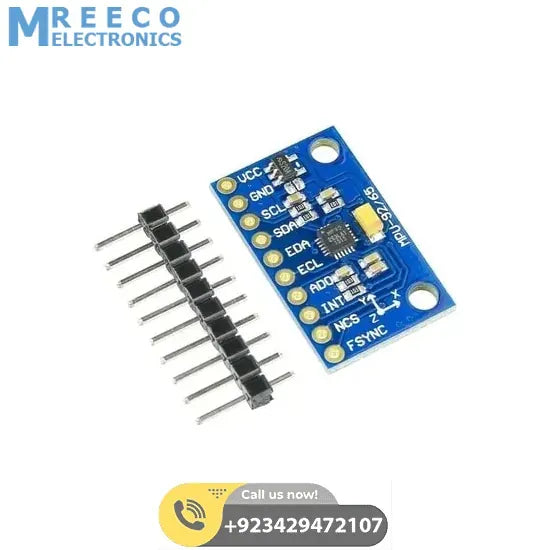

Package Includes:

  • 1 x MPU9250 Module
  • 1 x 10pin male-to-male header (unsoldered)
