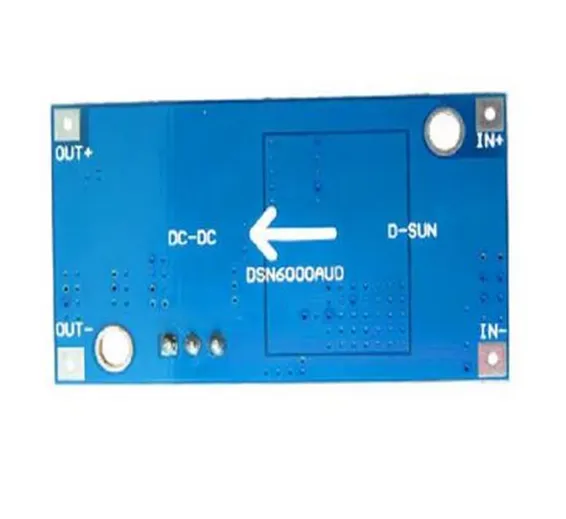

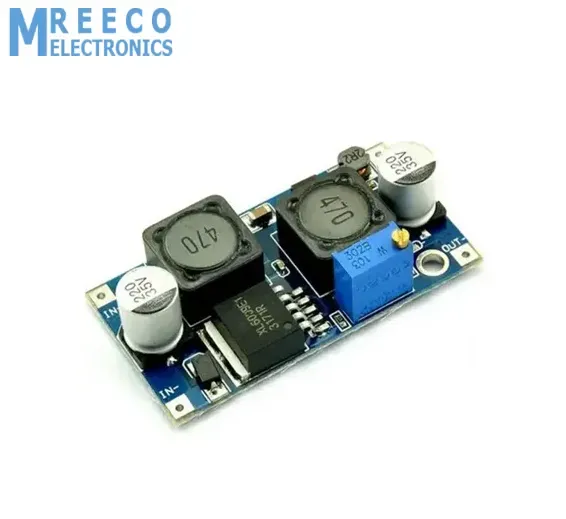

Automatic Buck Boost Convertor Module XL6009

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720642118904960

Rs.400 Rs. 500

A buck converter (step-down converter) is a DC-to-DC power converter which steps down voltage (while stepping up current) from its input (supply) to its output (load) On the other hand A boost converter is a DC to DC converter with an output voltage greater than the source voltage. Auto start voltage will be pulled down to 7V or less, and the engine will at high speed when the voltage up to 15V or higher. It is hard to work for 12V electrical equipment, this automatic buck-boost module can solve this problem, regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V. Built-in 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)High switching frequency 400KHz, the ripple is smaller, dimension is smaller. (LM2577 frequency only 50KHz)


Car regulator, solar photovoltaic, wind power and other applications of voltage instability.

Automatic Buck Boost Convertor Module XL6009 Specifications:

  1. Model Specification: DSN6000AUD Automatic Buck module
  2. Module Properties: Non- isolated boost (BOOST)
  3. Rectification: None- Synchronous Rectification
  4. Input Range: 3.8V - 32V
  5. Output Range: 1.25V - 35V
  6. Input Current:3A ( max ), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
  7. Conversion efficiency:<94% ( the greater the pressure, the lower the efficiency )
  8. Switching frequency:400KHz
  9. Output Ripple:50mV ( the higher the voltage, the greater the current, the greater the ripple )
  10. Load Regulation:± 0.5%
  11. Voltage Regulation:± 0.5%
  12. Operating Temperature:-40 - +85
  13. Dimensions:48mm * 25mm * 14mm ( L * W * H )

Buy Automatic and adjustable Buck(step-down)-Boost(step-up) Convertor Module XL6009 at Pakistan's Best Online Shopping Store at cheap price. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan

Package included:

  • 1 x Automatic Buck-Boost Convertor Module XL6009
