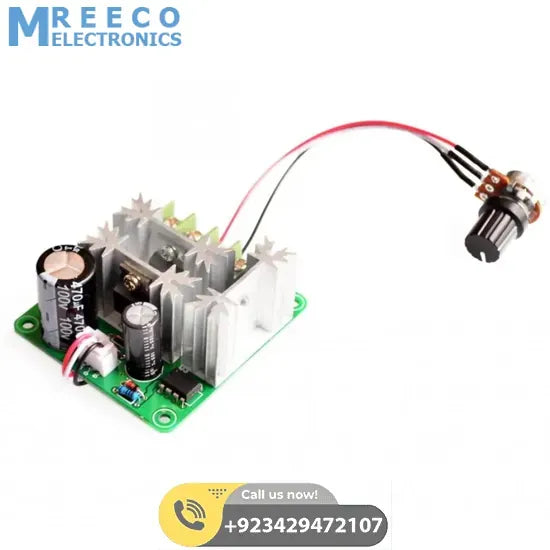

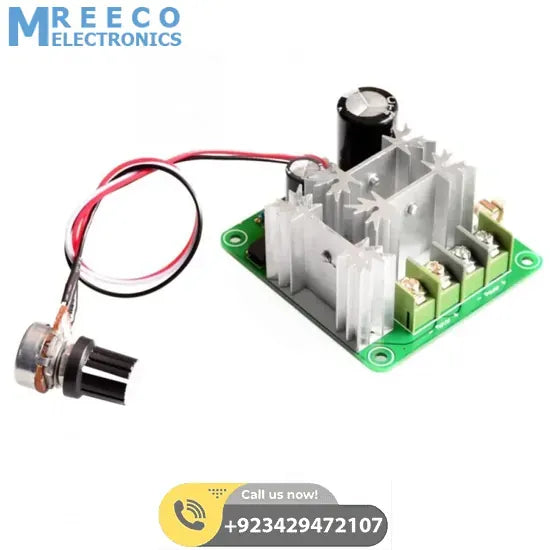

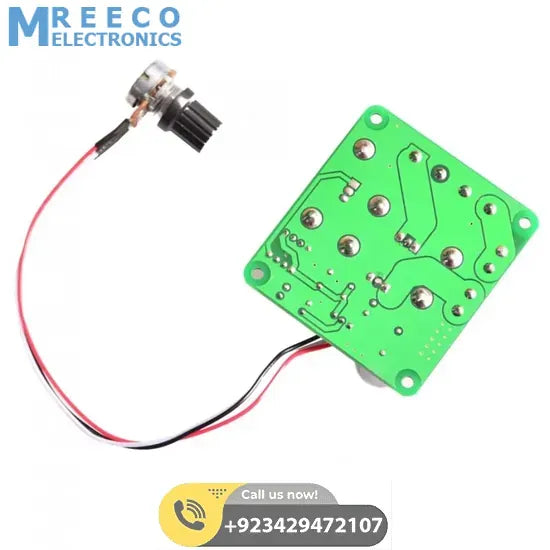

DC Motor Speed Controller DC 6V-90V 15A with Potentiometer

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637739000519484081

Rs.600 Rs. 750

6V-90V 15A PWM DC Motor Speed Controller w/ Knob--High Efficiency, High Torque, Low Heat Generating with Reverse Polarity Protection, High Current Protection From left to right they are Motor-, Motor+, Power-, Power+


  1. Operating voltage: DC6V-DC90V
  2. Control Power: 0.01-1000W (Max Current:15A)
  3. Quiescent Current: 0.05A (standby)
  4. PWM duty cycle: 0% -100%
  5. PWM Frequency: 15khz
  6. PCB Board: High temperature FR-4 PCB Thickness 1.6mm
  7. Reverse polarity protection:YES
  8. High-current protection: YES ( 20A fast fuses ceramic fuse )
  9. Control voltage over-voltage protection: YES
  10. Control voltage : 0V - 5V ( voltage control type , you can control the speed of the motor directly with PLC )
  11. Stepless speed regulation: The governor can control the motor speed from 0% -100% in stepless speed changing.
  12. Module Size (L x W x H): Approx. 64 x 59 x 22mm
  13. Size (L x W x H ): Approx. 64 x 59 x 22 mm
  14. Material: Plastic, metal

Package Includes

  • 1 x DC Motor Speed Controller DC 6V-90V 15A with Potentiometer
