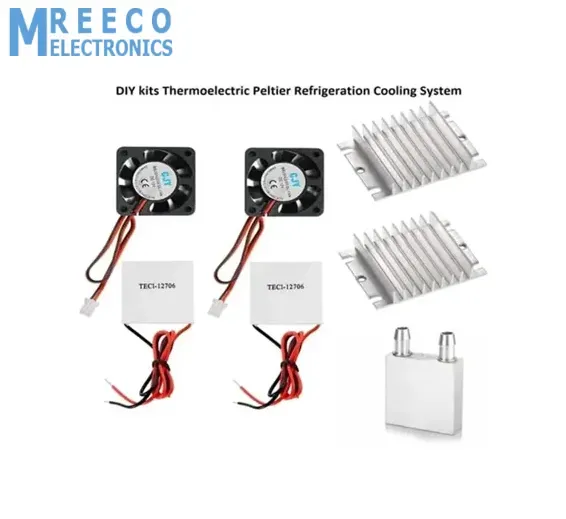

DIY kits Thermoelectric Peltier Refrigeration Cooling System Water cooling+ fan+ 2pcs TEC1-12706 Coolers

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718972447495194

Rs.3000 Rs. 3750

With the wide applications of semiconductor cooling, more and more DIY enthusiasts are interested in it. It's a question that how to make refrigerating capacity to a more great extent in water-cooling applications??.

This DIY kit could be just to your taste.

It contains a thermoelectric cooling (TEC) module which is a semiconductor-based electronic component that functions as a small heat pump. By applying a dc power source to a tec, heat will be transferred from one side of the module to the other. It creates a cold and hot side. Using this TEC TEC1-12706 Thermoelectric cooler or thermoelectric Peltier get ice cold in minutes or heat to boiling by simply reversing the polarity.TEC12706 Cooling refrigeration Plate used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.

This Kit contains an Aluminium water block because these devices must be used in conjunction with a heat sink water block to avoid burned one side is cooling (Printed model number)and another side is heating (Printed no word) when working. Please radiating the heating side

Features Of Diy Kit Thermoelectric Peltier Refrigeration Cooling System TEC1-12706:

  • Adopt TEC1-12706 semiconductor chilling plate, good quality for use.
  • Complete sealed structure, isolating the moisture in the air.
  • A unique M-shaped flow channel supports full-scale placement water block
  • Higher reliability than others.
  • Lightweight and mini in size, easy to install.
  • Great DIY kit for electronic enthusiasts in semiconductor cooling applications.

Specifications Of DIY Cooling TEC1-12706 KitsThermoelectric Peltier Refrigeration:

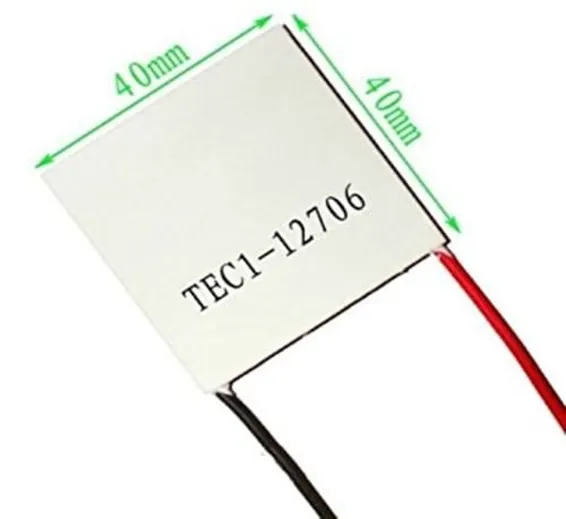

  1. Semiconductor Chilling Plate: TEC1-12706
  2. Size: 40 * 40 * 3.75mm
  3. Internal Resistance: 2.1~2.4Ω
  4. Max. Temperature Difference: 67°C Above
  5. Rated Voltage: 12V(Vmax. 15V, Starting Current 5.8A)
  6. Working Current: Imax.=4~4.6A(Rated 12V)
  7. Refrigeration Power: Max. 50~60W
  8. Working Environment: -55~83°C
  9. Sealing Process: Standard 704 silicon rubber sealing all sides

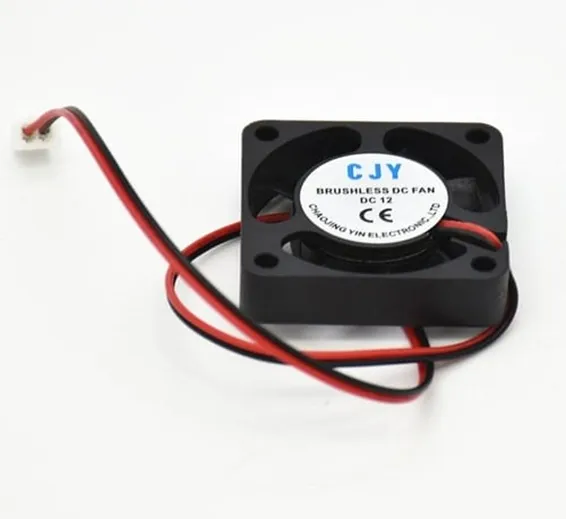

  10. Fan: DC 12V
  11. Conduction Module Size: 60 * 45 * 21mm
  12. Water Block Size: 40 * 40 * 12mm
  13. Fan Size: 40 * 40 * 10mm


  • The conduction cool module can frost when the temperature is under -25°C.
  • TEC1-12706: one side with words is the refrigeration side, the other side is heat dissipation side.
  • Must install heat sink or water-cooled radiator on the heat dissipation side; otherwise will burn the Peltier.
  • The DC power is not included in this kit, please prepare it by yourself.

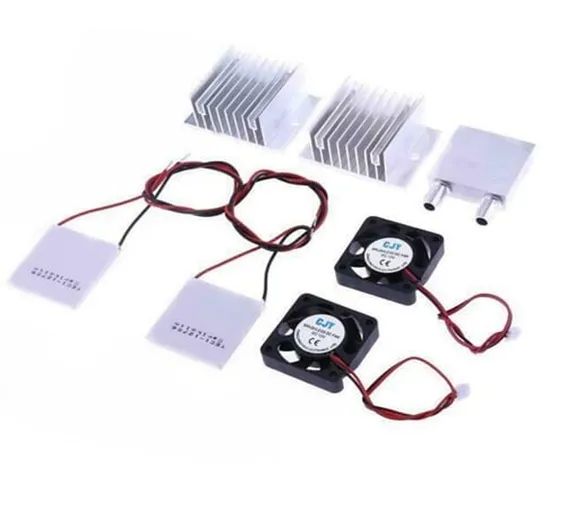

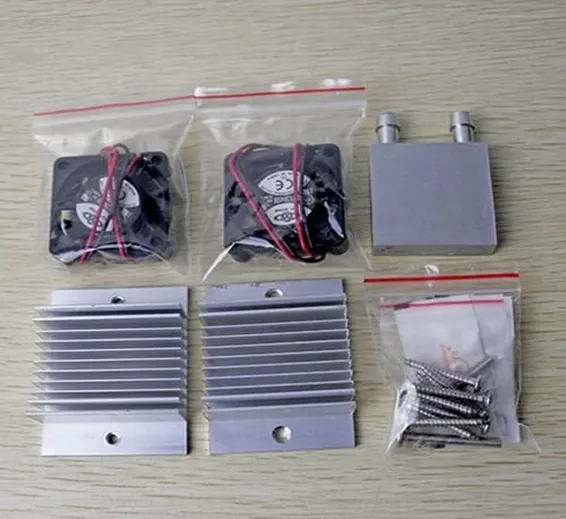

Package Includes:
  • 2 * Conduction Module/Heat sink
  • 1 * Water Block
  • 2 * TEC1-12706
  • 2 * Fan
  • 1 * Pack of Screws
