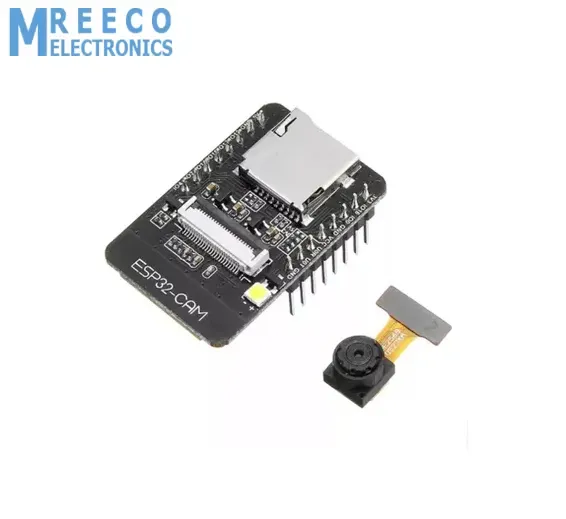

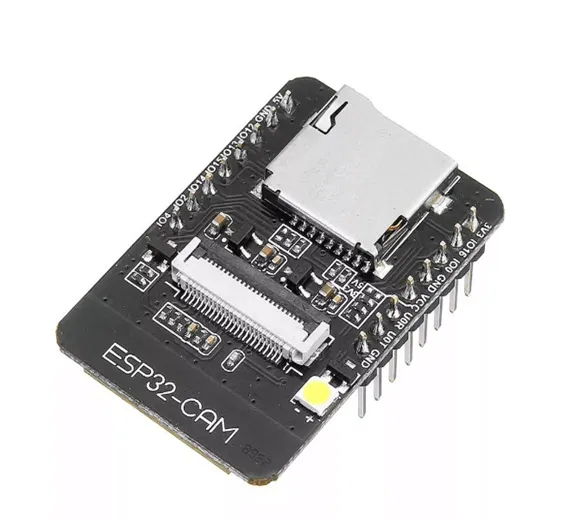

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640 For Arduino

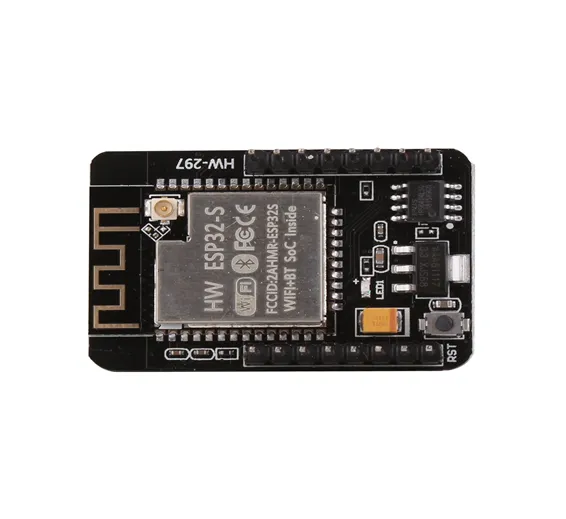

ESP32-CAM is a WIFI+ Bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc. Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts MCUs to add networking capabilities to existing devices.ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.

Features:

1. Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
2. Low-power dual-core 32-bit CPU for application processors
3. Up to 240MHz, up to 600 DMIPS
4. Built-in 520 KB SRAM, external 4M PSRAM
5. Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC

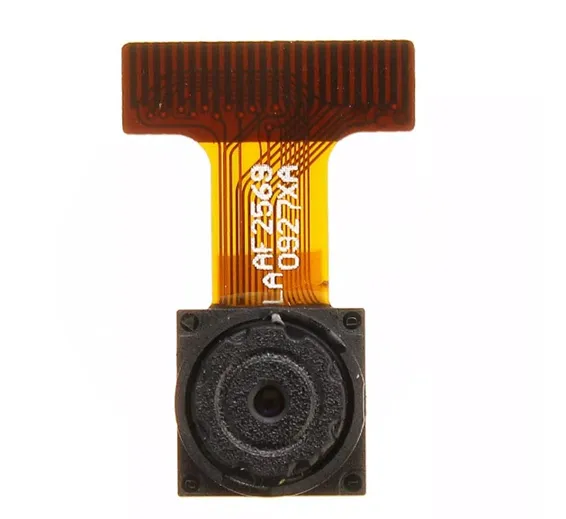

6. Support OV2640 and OV7670 cameras with built-in flash
7. Support for images WiFI upload
8. Support TF card
9. Support multiple sleep modes
10. Embedded Lwip and FreeRTOS
11. Support STA/AP/STA+AP working mode
12. Support Smart Config/AirKiss One-click distribution network
13. Support for serial local upgrade and remote firmware upgrade (FOTA)
14. Support secondary development

Product Specifications:

Module model

ESP32-CAM Package DIP-16 Size 27*40.5*4.5(±0.2)mm SPI Flash default 32Mbit RAM internal520KB+external 4M PSRAM Bluetooth bluetooth4.2BR/EDR and BLE standards Wi-Fi 802.11 b/g/n/e/i Support interface UART, SPI, I2C, PWM

Support TF card

Maximum support 4G IO port 9 Serial port rate default 115200 bps Image output format JPEG (only supported by OV2640), BMP, GRAYSCALE Spectrum range 2412 ~ 2484MHz Antenna form onboard PCB antenna, gain 2dBi Transmit power 802.11b: 17±2 dBm (@11Mbps) 802.11g: 14±2 dBm (@54Mbps) 802.11n: 13±2 dBm (@MCS7) Receiving sensitivity CCK, 1 Mbps : -90dBm CCK, 11 Mbps: -85dBm 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm MCS7 (65 Mbps, 72.2 Mbps): -67dBm Power consumption Turn off the flash: 180mA@5V Turn on the flash and adjust the brightness to the maximum: 310mA@5V Deep-sleep: The lowest power consumption can reach 6mA@5V Modern-sleep: up to 20mA@5V Light-sleep: up to 6.7mA@5V Security WPA/WPA2/WPA2-Enterprise/WPS Power supply range 5V Operating temperature -20 °C ~ 85 °C Storage environment -40 °C ~ 90 °C, < 90%RH

ESP32-CAM Picture Output Format Rate:

QQVGA QVGA VGA SVGA JPEG 6 7 7 8 BMP 9 9 - - GRAYSCALE 9 8 - -

Package Include:

• 1 x ESP32-CAM Module
