SYD1230 Dot Type Laser Diode Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719011491319182

Rs.550 Rs. 688

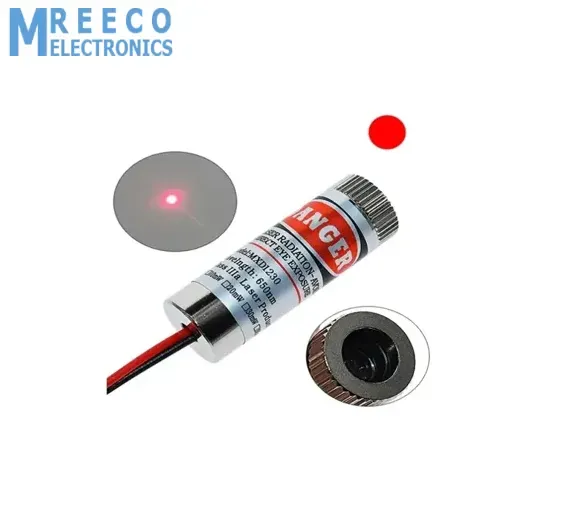

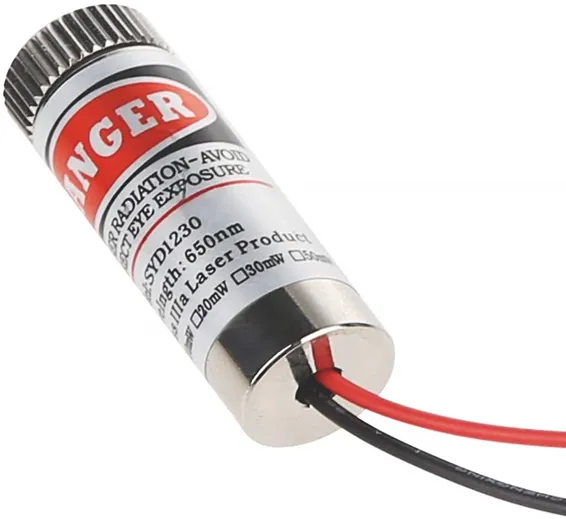

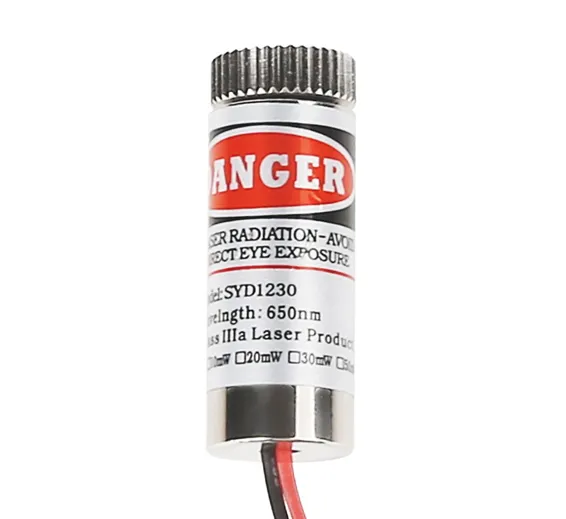

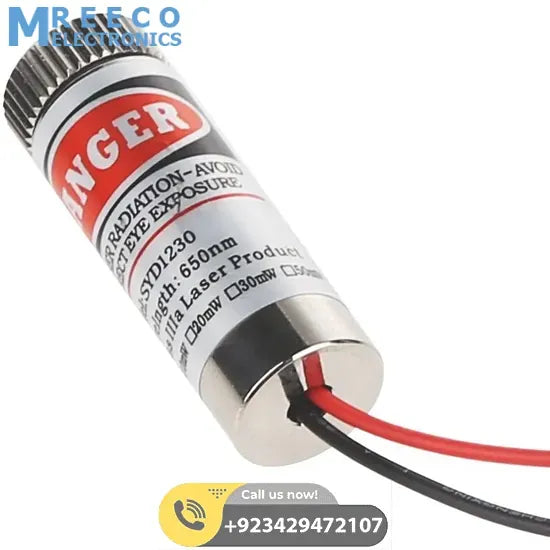

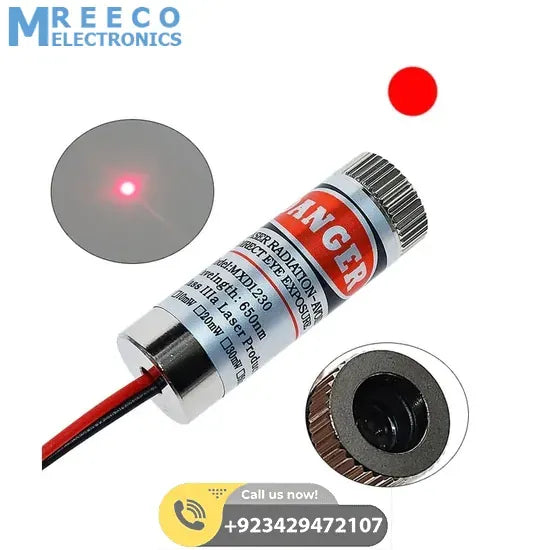

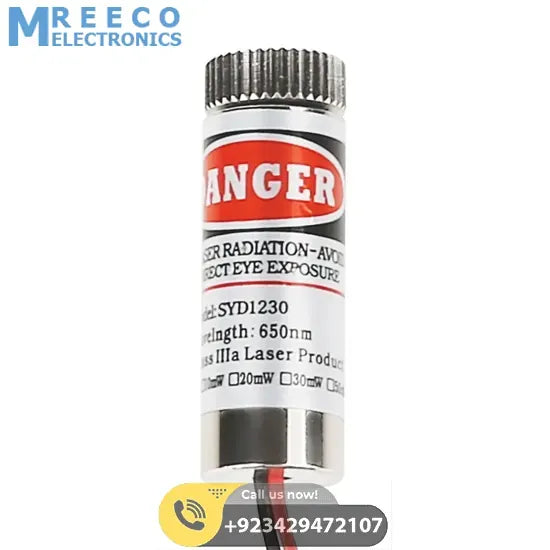

This is the SYD1230 12mm 5mw Red DOT laser module. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable. It is suitable for 3V-5V 5mW standard, with 6mm outside diameter. It can be used to connect diode tubes for multiple uses. This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.

SYD1230 Laser Diode What is it?

SYD1230 or CHT1230 laser is an industrial grade light emitting device, it is red in the shape of a pointer or cross, it is factory set to obtain a cross-shaped beam of light as it incorporates a glass lens that generates the shape of a cross, in the same way if you only require that the laser be a pointer, disarm the laser and remove the crystal finally, reassemble the laser, in this way the laser will be a pointer.

What is it for?

It is used to generate a beam of light in the shape of a pointer or cross, ideal for industrial use to have a point of reference or guide others, it is very useful for electronics projects.


  • Type: SYD1230 laser
  • Operating voltage: 4.5 ~ 5v
  • Current: 20 ~ 35 mA
  • Output power: 5mW
  • Wavelength: 650nm
  • Operating temperature: + 10 ~ + 40C
  • Output: Red dot and cross beam
  • Range (according to manufacturer): 400mts
  • Adjustable focus
  • Cable length: 135 mm
  • Size: 12 x 35mm
  • Weight: 14.40 g
  • Perfect for DIY project

Connection :

  • Negative terminal black cable V (-)
  • Positive terminal red wire v (+)


Laser types by media type

The means of amplification of the laser is a charge of atoms of a solid, a liquid or a gas with electrons to stimulate around the nucleus. Lasers, therefore, can be:

Solid state lasers:

They have laser material distributed in a solid matrix, for example ruby ​​or neodymium-YAG (yttrium aluminum garnet) lasers. The neodymium YAG laser emits infrared light at 1,064 microns.

Gas lasers (helium and helium-neon, HeNe, are the most common gas lasers):

They have a primary output of a visible red light. CO2 lasers emit energy in the far infrared, 10.6 microns, and are used to cut hard materials.

Excimer laser (the name is derived from the terms excited and dimers):

They use reactive gases like chlorine and fluorine mixed with inert gases like argon, krypton or xenon. When electrically stimulated, a pseudomolecule or dimer is produced and, when lasers are applied, it produces light in the ultraviolet range.

Dye lasers:

They use complex organic dyes such as rhodamine 6G in liquid solution or suspension as a laser medium. They can be adjusted in a wide range of wavelengths.

Semiconductor lasers (sometimes called diode lasers):

They are not solid state lasers. These electronic devices are generally very small and use little power. They can be embedded in larger arrays, for example the writing font in some laser printers or compact disc players.

Package Includes:

1 x SYD1230 Laser Diode Module

Buy 650nm Red Dot Laser Diode Module SYD1230 at Pakistan's Best Online Shopping Store in cheap price.Here you get a wide range of red line 5mw laser sensors for Arduino. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.
