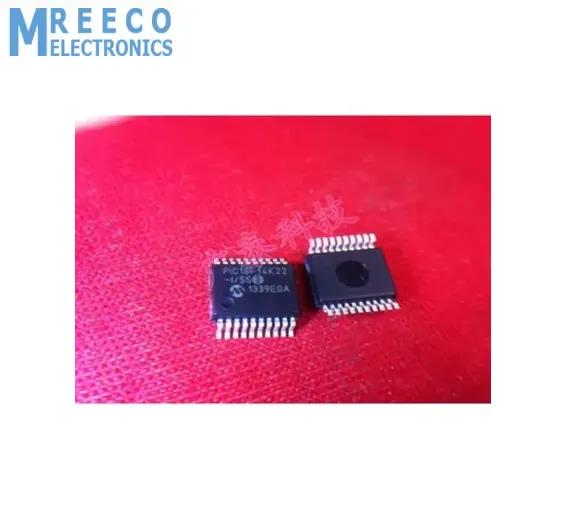

Microchip PIC18F14K22-I/SS

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637730990204207530

Rs.290 Rs. 363

MICROCHIP PIC18F14K22-I/SS8 Bit Microcontroller, Flash, PIC18FxxKxx, 64 MHz, 16 KB, 512 Byte, 20, SSOP

The PIC18F14K22-I/SS is a 8-bit Flash Microcontroller with nanoWatt XLP technology. This new family of devices offer all of the advantages of the well recognized PIC18F high performance MCUs,

  1. C compiler optimized architecture
  2. and an industry leading peripheral set now available in a low pin-count option. This new 20-pin product includes a 16MHz precision internal oscillator which can be used with the standard 4X PLL to produce 16 MIPS of performance (64MHz at 3V). Standard analogue peripherals include 12 channels of 10-bit A/D, dual rail-rail comparators with improved input/output multiplexing and an on-chip selectable fixed voltage reference. Digital peripherals include an enhanced capture/compare/PWM (ECCP ) module with PWM steering and a master synchronous serial port (MIC,SPI) module with software controllable address masking.


    1. C compiler optimized architecture
    2. 256-byte Data EEPROM
    3. Extreme low-power management
    4. Flexible oscillator structure
    5. Precision 16MHz internal oscillator block
    6. Four crystal modes up to 64MHz
    7. Fail-safe clock monitor
    8. Allows for safe shutdown if peripheral clock stops
    9. Two-speed oscillator start-up
    10. Self-reprogrammable under software control
    1. Power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)
    2. Programmable brown-out reset (BOR)
    3. Extended watchdog timer (WDT) with on-chip oscillator and software enable
    4. Enhanced capture/compare/PWM (ECCP) module with PWM output steering
    5. Master synchronous serial port (MSSP) module with two modes of operation

    ESD sensitive device, take proper precaution while handling the device.
