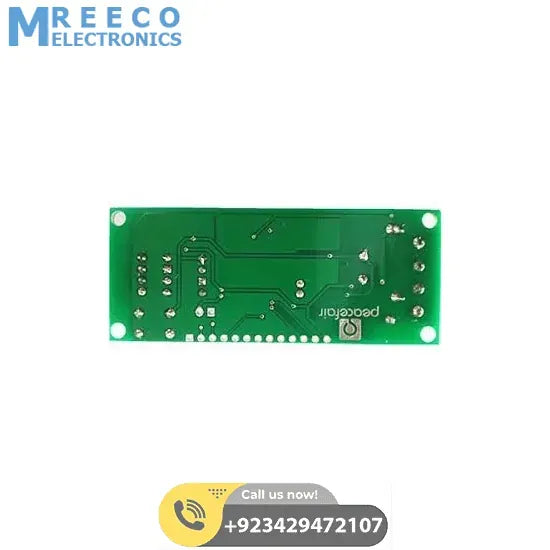

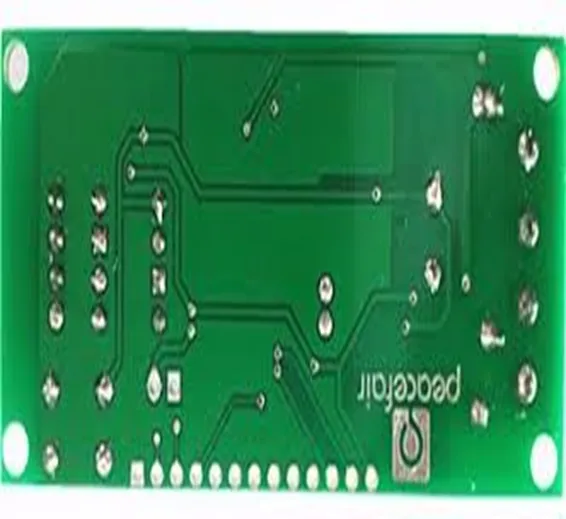

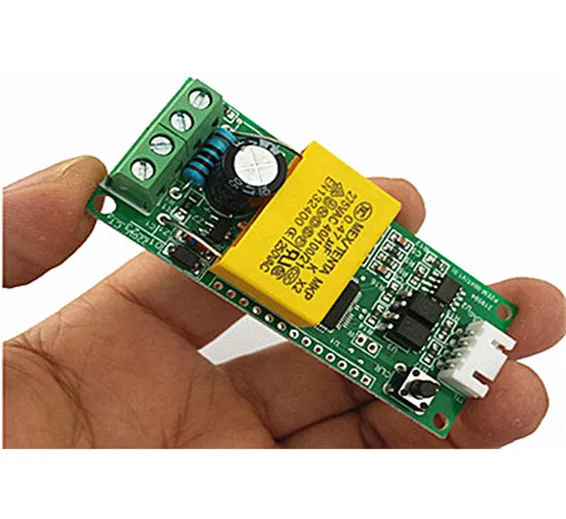

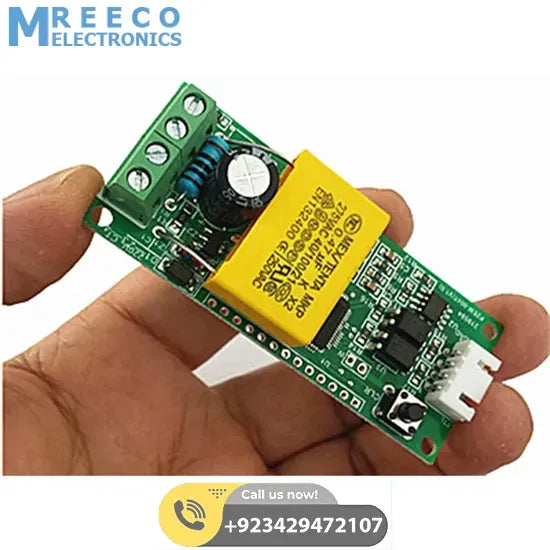

PZEM-004T V 100A Single Phase Power Energy Meter Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637721595103958930

Rs.3000 Rs. 3750

PZEM-004T New Version Single Phase Power Energy Meter TTL Modbus AC 220V 100A Voltage Current Watt Kwh Ammeter with CT USB Cable. Manual and driver!!!

A function

  1. Function of measurement of electrical parameters (voltage, current, active power).
  2. clear function of the power button.
  3. Shutdown data storage function (cumulative shutdown before saving).
  4. PC display function (display voltage, current, active power).
  5. The serial communication function (comes with TTL serial interface, through several terminals communicate with the adapter plate, read and configure the parameters).

B. front screen and key

  1. One User interface
  2. PC display window composed of four, used to display voltage, current, power, power parameters, as shown in FIG.

Two screen format

  1. 1. Power: measuring range 0 22kW
  2. 0 10 kW in the display format from 0.000 to 9.999;
  3. In 10 22kW screen format 10.00 22.00.

2. Power: measuring range 0-9999kWh

  1. 0 10 kWh in the display format from 0.000 to 9.999;
  2. 10 100kWh in the display format from 10.00 to 99.99;
  3. 100 100.0 kWh in the display format of 999.9 a;
  4. 1000 9999kWh and above the display format from 1000 to 9999.

3. Voltage: test range 80 260VAC

Screen format 110.0 220.0.

4. Current: measuring range 0 100A

Display format 00.00 to 99.99.

Three! Button

  1. A button built into the panel, used to make electricity work clearly, as shown in Figure 2.
  2. Electricity cleaning method: Press the zero key for five seconds and release the button. Press again to delete the key, the data is deleted and the output load is deleted, it has been completed so far.

C serial communication

The module is equipped with a serial TTL, data communication interface through the serial port can be read and set the relevant parameters; but if you want a device with a USB or RS232 cable (such as computers) to communicate, you need to be equipped with different TTL adapter hardware boards (USB communication needs with TTL to USB adapter plate; RS232 communication needs with TTL to RS232 adapter plate) adapter plate specific connection details can be found in fig.

D. Description of communications

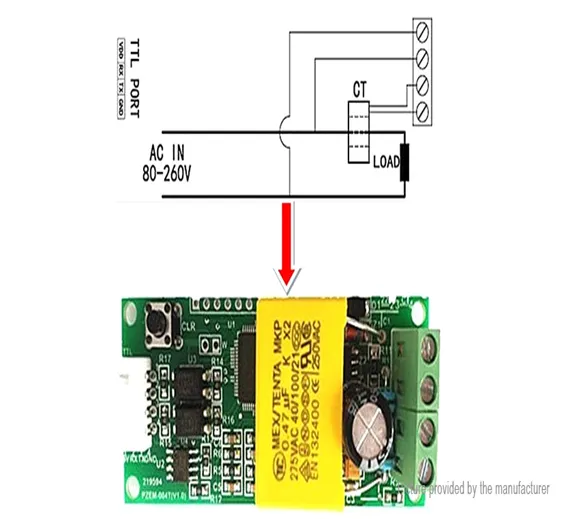

  1. Connect the hardware according to the wiring diagram.
  2. Connect the line after a good First select the communication port of the PC software module communication port COM2, COM3 ,COM4 through the device manager view if there are no more than a few ports, you have to modify the port.

E considerations

  1. This module is suitable for indoor use, not outdoors.
  2. The applied load must not exceed the rated power.
  3. The wiring can not be wrong.

F the specifications

  1. 1. Operating voltage: 80 260VAC
  2. 2. Test voltage: 80 260VAC
  3. 2. Nominal power: 100A 22000 W
  4. 3. Operating frequency: from 45 to 65Hz
  5. 4. Measurement accuracy: 1.0

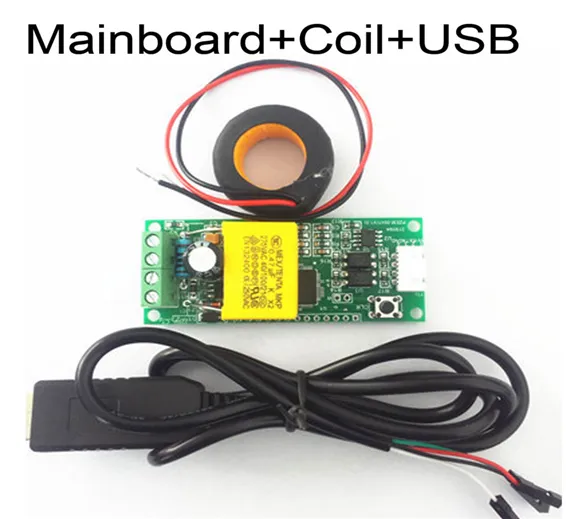

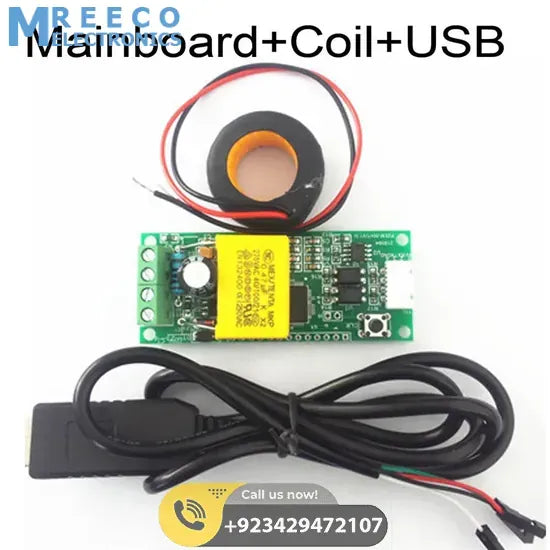

Package content

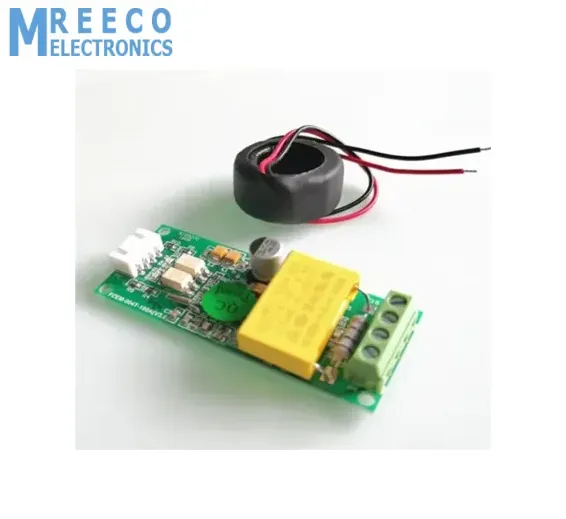

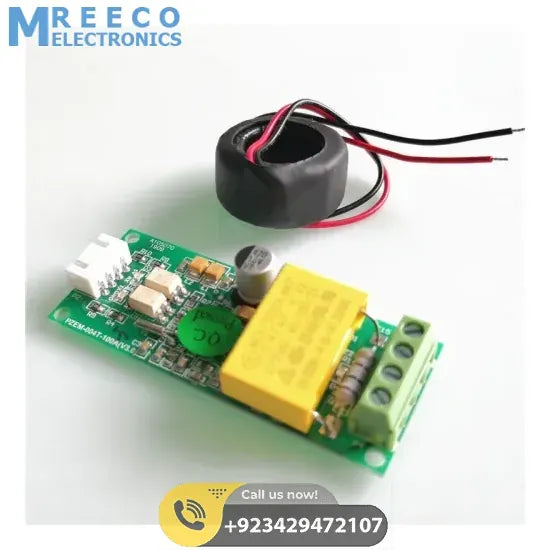

  • 1 punks PEACEFAIR AC 100A power meter and electrical communication module, power, energy voltmeter
  • 1 pcs Transformer instrument (CT coil) ( The color of the CT is random. )
  • 1 pin USB communication (optional)
