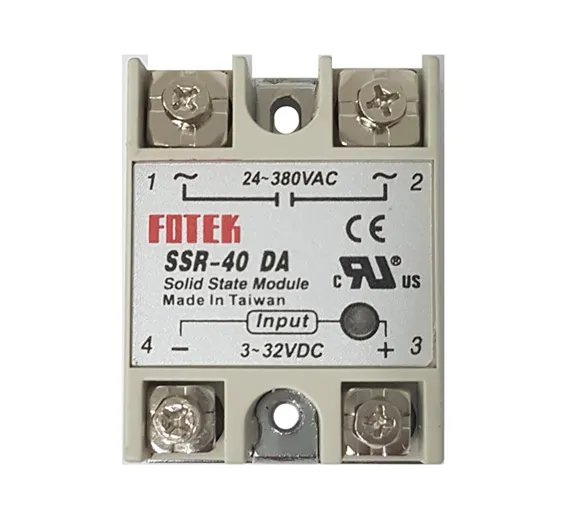

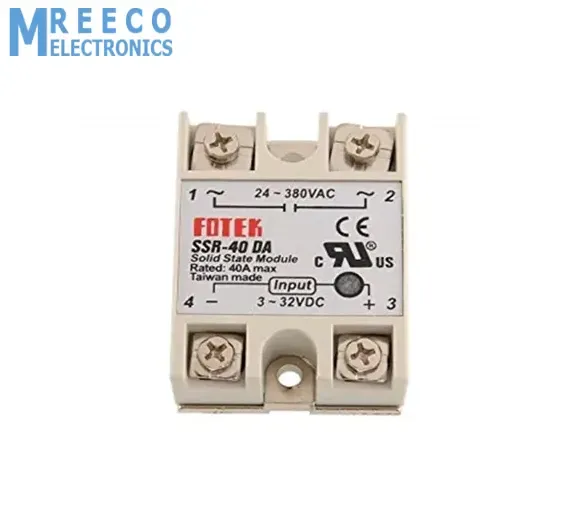

Solid State Relay Module Fotek SSR 40 DA

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719015365612380

Rs.750 Rs. 938

The Solid State Relay – SSR-40DA allows you to control high current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays, and since there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

This particular Solid State Relay can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Features:

  1. Trigger Current: 7.5mA/12V
  2. Control Voltage: 24-380V AC
  3. Input Voltage: 3-32V DC
  4. Zero Cross

Documents:

  1. Datasheet
  2. Product Video

Buy Solid State Relay Fotek SSR 40 DA at Pakistan's Best Online Store at cheap price. Here you get the best SSR. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan

Package Include:

1x Solid State Relay Fotek SSR 40 DA
