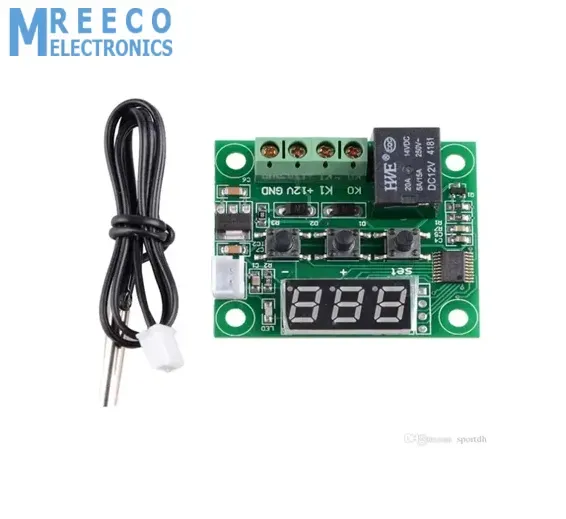

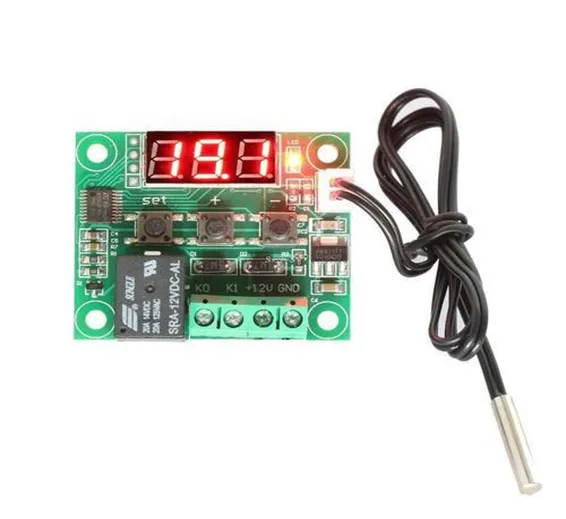

W1209 Temperature Controller Thermostate

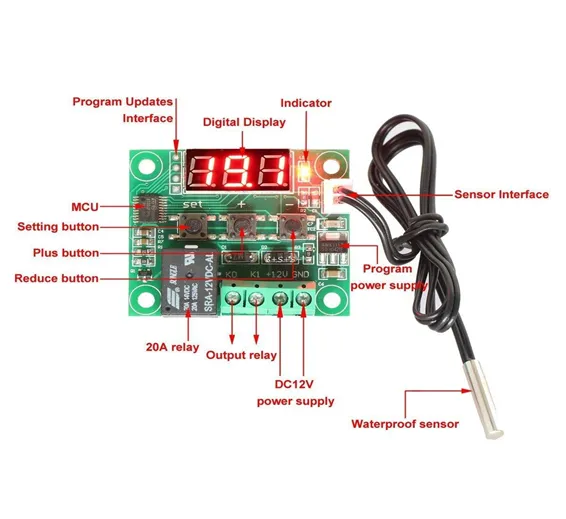

This is W1209 Temperature controller n incredibly low cost temperature controller. This w1209 temperature controller is a highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this Temperature controller module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The onboard relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an onboard LED.
Specifications Of W1209 Temperature Controller:-
- Temperature Control Range: Minus 50 to 110 C
- Resolution at -9.9 to 99.9: 0.1 C
- Resolution at all other temperatures: 1 C
- Measurement Accuracy: 0.1 C
- Control Accuracy: 0.1 C
- Refresh Rate: 0.5 Seconds
- Input Power (DC): 12V
- Measuring Inputs: NTC (10K 0.5%)
- Waterproof Sensor: 0.5M
- Output: 1 Channel Relay Output, Capacity: 10A
Best Online Shopping website for W1209 Temperature Controller Incubation Thermostat. Here you get W1209 Temperature Controller Thermostat at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Faisalabad and all over Pakistan.
- 1x w1209 temperature controller
- 1x temperature prob
