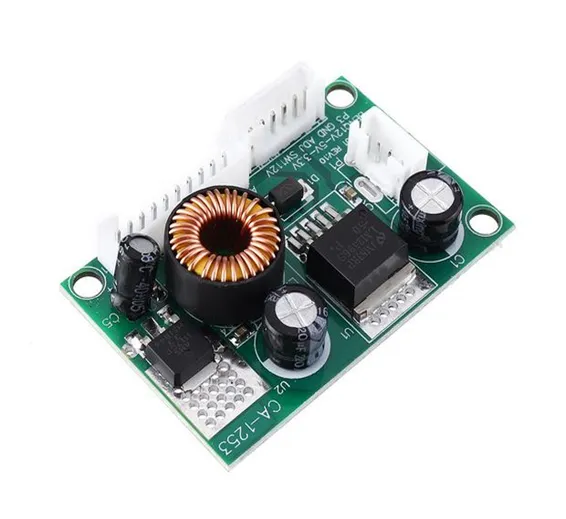

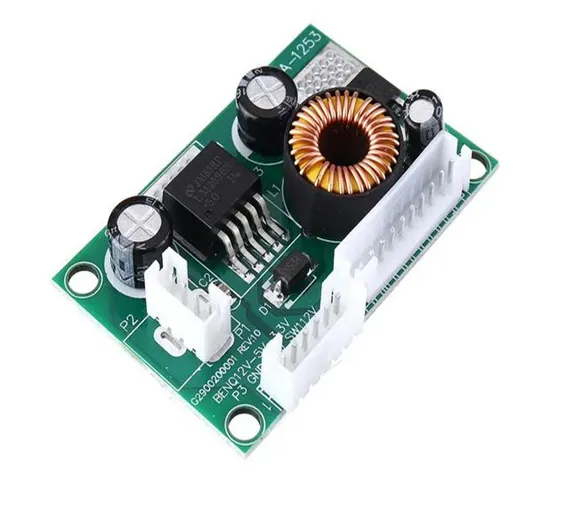

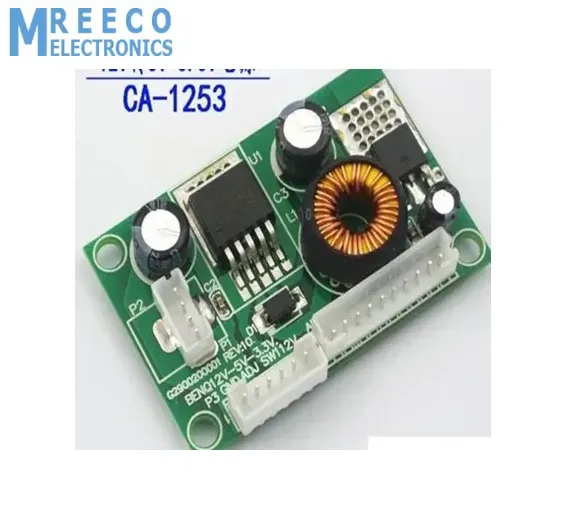

12v DC step down Convertor Module CA1253 DC TO DC Buck Converter

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720659985045638

Rs.300 Rs. 375

It is 12v DC step down Converter Module CA1253 which has Input voltage 9-25V, output voltage 5V-3.3V, efficiency is as high as 92%, the maximum output current is 3A, 24-hour work does not need to strengthen heat. This is a dual output power module for various applications using 5V and 3.3V and it is driven by DC 12V input through 2 power IC to switch 5V and 3.3V. 12V DC converter DC step-down module CA-1253 12V to 5V to 3.3V 3A current power supply board,LCD repair tool.


12v DC step down Convertor Module Feature:

  1. Input voltage: 12V
  2. Output voltage: 5V and 3.3V
  3. Max Output current: about 3A,
  4. Conversion efficiency: up to 92%
  5. Operating frequency: 380kHz
  6. Protection: Output short circuit and over heat with auto-recovery

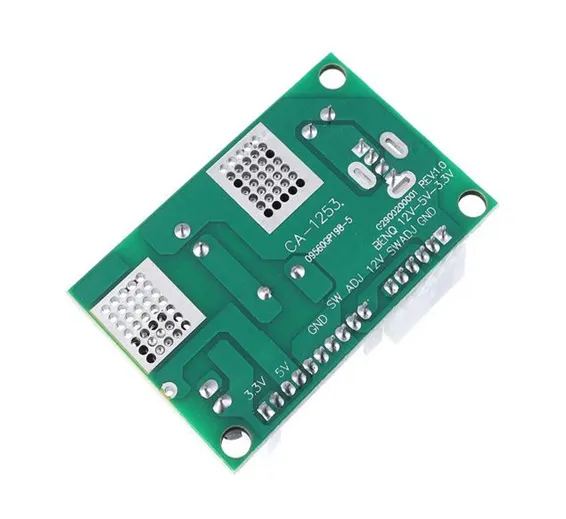

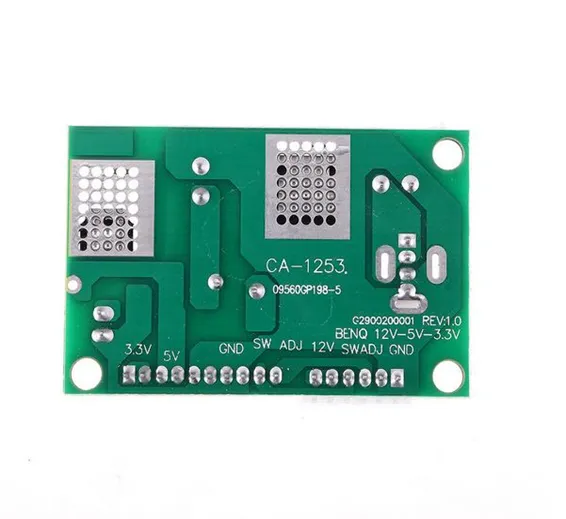

Pin Assignment for P2, P3, and P4:

  1. P2 is 12V input port: 12V 12V GND GND
  2. P3 is 12v output port:GND GND ADJ SW 12V 12V
  3. P4 are 5v & 3.3v output port: ADJ SW GND GND GND GND 5V 5V 3.3V 3.3V(1)

Buy 12v DC step down Converter Module CA1253 at Pakistan's Best Online Shopping Store in cheap price. Here you get a wide range of buck convertor Regulators for LCD repair tools. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Includes:

  • 1x 12v DC LED step down Convertor CA1253
