Addressable LED Pixel Controller T1000B T-1000B

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637725015489588818

Rs.4000 Rs. 5000

LED Pixel Controller T1000B is a brand new and high-quality product. This LED controller supports point, line, surface, rules and special-shaped handle. This LED strip light controller has a single-port output and which can support 2048 pixels. This LED light controller can joint multiple controllers which can be cascaded together and work synchronous, playback content stored in the SD card.

Features Of 5-24V T1000B SD Card LED Pixel Controller WS2812B WS2811 RGB LED Strip:

  • 32- 65536 Gray, Support software Gamma correction.
  • Support a variety of point, line, surface light source, supports a variety of rules, profiled processing.
  • Single-port output can support 2048 lights.
  • Off-line(SD Card) control, playback content stored in the SD card.
  • T-1000B store a maximum of 16 programs, copy multiple files to the SD card in order, after formatting the SD card as “FAT” format.
  • The program must be named in orders . Ex.:00_1.led, 01_1.led, 02_1.led.
  • Compatible with a single line or double line chips.

NOTE: 1. When T-1000B controller less than 512 pixels the frame rate can reach 30fps. When T-1000B control more than 512 pixels the frame rate will slow down automatically.

Specifications Of Digital LED 2048 Pixels T-1000B DMX512 RGB Controller:

  1. Working temperature: -30℃-85℃
  2. Working voltage: DC5V / DC7.5-24V
  3. Working power: 2W
  4. Size: L158mm×W77mm×H25mm
  5. Weight: 0.35KG
  6. Signal port: 3pin connect port
  7. Type: SD card(suggest using high-speed SD card)
  8. Capacity: 128MB-2GB
  9. Format: FAT
  10. Store file: *.led

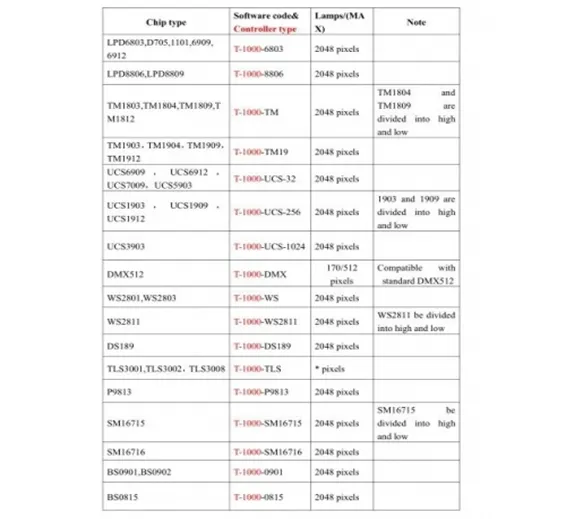

Support Chips:

Package Includes:

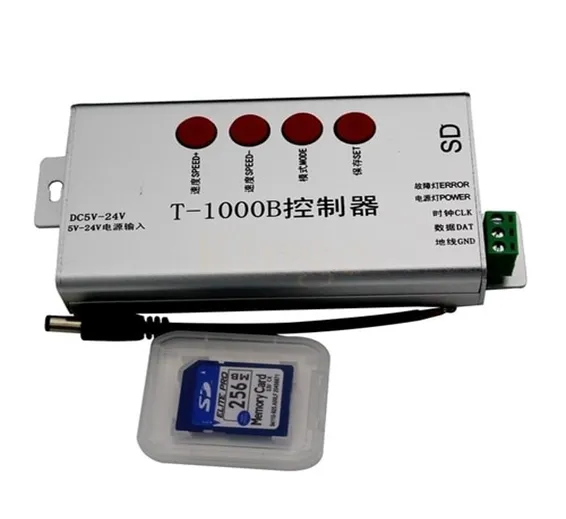

  • 1 x T-1000B Control
  • 1 x 256MB SD Card
  • 1 x User Manual

Best Online Shopping website for Addressable LED Pixel Controller T1000B T-1000B Best LED Light Strip RGB Controller in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
