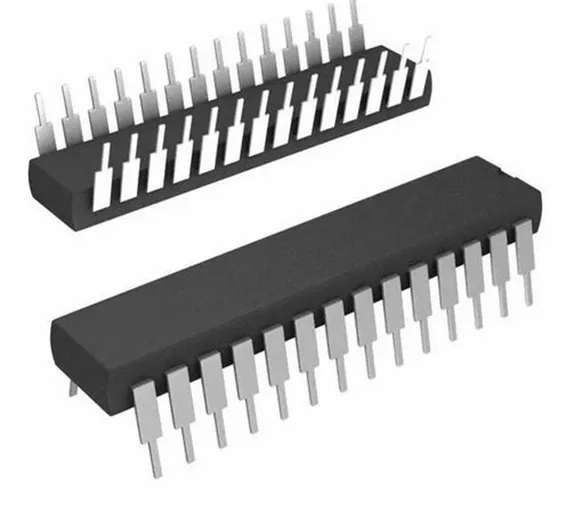

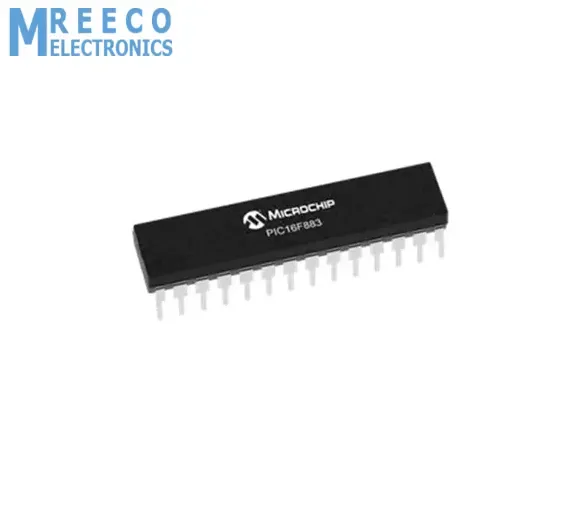

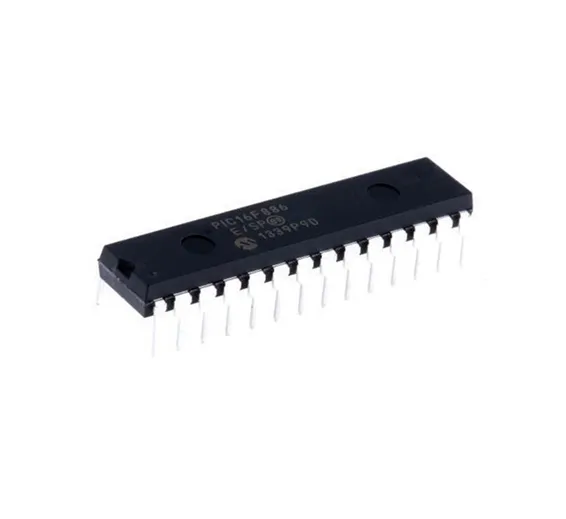

Dell Microcontroller PIC16F883 DIP 28

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720648581733368

Rs.400 Rs. 500

PIC microcontrollers ( Programmable Interface Controllers), are electronic circuits that can be programmed to carry out a vast range of tasks. ... They are found in most electronic devices such as alarm systems, computer control systems, phones, in fact almost any electronic device. PIC16F883 powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into a 28 pin package.

Parametrics

  1. Program Memory Type: Flash
  2. Program Memory Size (KB): 7
  3. CPU Speed (MIPS/DMIPS): 5
  4. SRAM (B): 256
  5. Data EEPROM/HEF (bytes): 256
  6. Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2)
  7. Capture/Compare/PWM Peripherals: 2 Input Capture, 1 CCP, 1 ECCP
  8. Timers:
  9. 2 x 8-bit, 1 x 16-bit
  10. ADC Input: 11 ch, 10-bit
  11. Number of Comparators: 2
  12. Temperature Range (°C): -40 to 125
  13. Operating Voltage Range (V): 2 to 5.5
  14. Pin Count: 28

Special Microcontroller Features:

  1. Precision Internal Oscillator:
    • Factory calibrated to ±1%
    • Software selectable frequency range of 8 MHz to 32 kHz
    • Software tunable
    • Two-Speed Start-Up mode
    • Fail-safe clock monitoring for critical applications
    • Clock mode switching during operation for low-power operation
  2. Power-Saving Sleep mode
  3. Power-on Reset (POR)
  4. Selectable Brown-out Reset (BOR) voltage
  5. Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  6. In-Circuit Serial Programming™ (ICSP™) via two pins
  7. In-Circuit Debug (ICD) via two pins
  8. High-endurance Flash/EEPROM cell:
    • 100,000 erase/write cycle enhanced Flash program memory, typical
    • 1,000,000 erase/write cycle data EEPROM memory, typical
    • Data EEPROM retention > 40 years
  9. Self-reprogrammable under software control
  10. Programmable code protection
  11. Peripheral Features:
    • Device Features:
      • 1 input only pin
      • 25 I/O
      • High sink/source current 25 mA
      • Interrupt-on-pin change option
  12. Timers:
    • TMR0: 8-bit timer/counter with 8-bit Prescaler
    • TMR1 enhanced: 16-bit timer/counter with Prescaler, External Gate Input mode and dedicated low-power 32 kHz oscillator
    • TMR2: 8-bit timer/counter with 8-bit period register, Prescaler and postscaler
  13. Capture/Compare/PWM (CCP) module
  14. Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
  15. Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask capability
  16. Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
    • Supports RS-485, RS-232 and LIN compatibility
    • Auto-Baud Detect
    • Auto-wake-up on Start bit
  17. Ultra-Low-Power Wake-up (ULPWU)

Analog Features:

  1. 10-bit 11 channel Analog-to-Digital (A/D) Converter
  2. 2 Analog Comparator modules with:
    • Programmable on-chip Voltage Reference (CVREF) module (% of VDD)
    • Fixed 0.6 Vref
    • Comparator inputs and outputs externally accessible
    • SR Latch mode

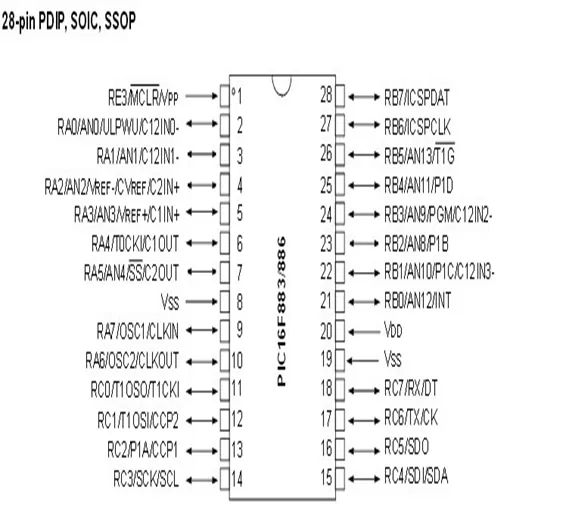

Pin configuration:

Datasheet:

pic16f883 datasheet

Buy Microcontroller PIC16F883 DIP 28 at Pakistan's Best Online Shopping Store in cheap price. Here you get a wide range of pic Microchips. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Include:

1x Microcontroller PIC16F883 DIP 28
