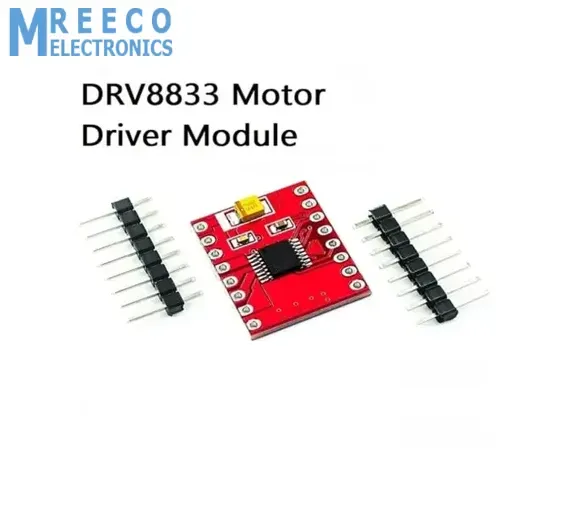

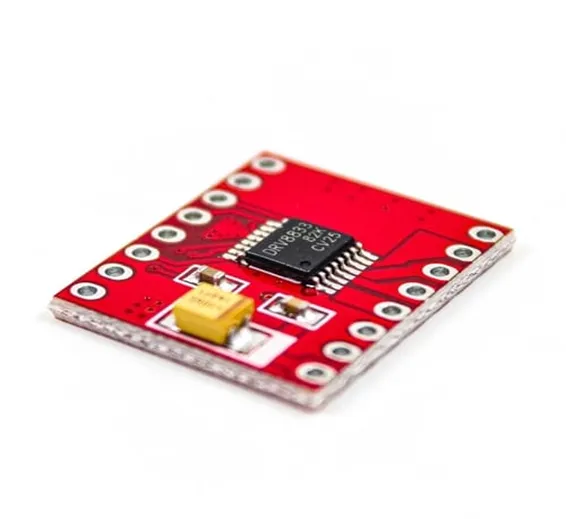

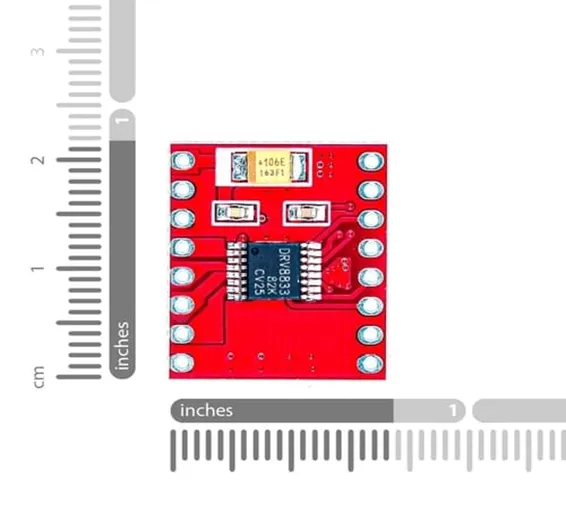

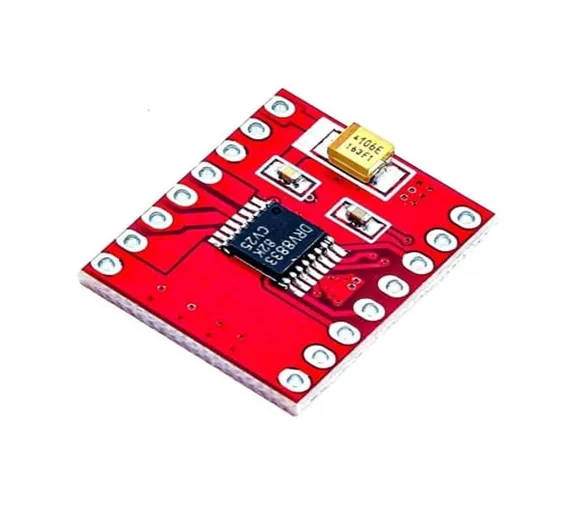

DRV8833 DC Motor Driver Module Dual channel 1.5A per channel 2.7V to 10.8V

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637731250419016498

Rs.300 Rs. 375

Today, speed and direction control of DC motors is very important and useful. The H-bridge circuit is one of the most common techniques to control a DC motor. The DRV8833 dual-channel module uses this technique to control two DC motors. This Dual H-bridge motor driver can drive two DC motors, a stepper motor, or other inductive loads. It can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. It can supply up to about 1.5 A per channel continuously and can tolerate peak currents up to 2 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. This DRV8833 dual-bridge motor controller is the replacement for the TB6612FNG dual-channel motor controller.

Note: If the motor draws currents above 0.6A, the use of a heat sink may be required.

Features And Specifications of 1.5A Stepper Motor Driver Module DRV8833:

  • Single H-bridge output current: 1.5A, which can drive 2 DC geared motors.
  • Built-in overcurrent protection, short circuit protection, under-voltage lockout, and overheat protection. With low power consumption sleep mode.
  • Driver chip: DRV8833
  • Supply voltage: Vcc = 2.7-10.8V
  • Output current: Iout = 1.5A (RMS per channel) / 4A peak
  • Energy saving (sleep function). Div >
  • Operating modes: Turn clockwise, anti-clockwise, neutral and brake.

DRV8833 Dual Motor Driver Datasheet

DRV8833 Dual Motor Driver Pinout

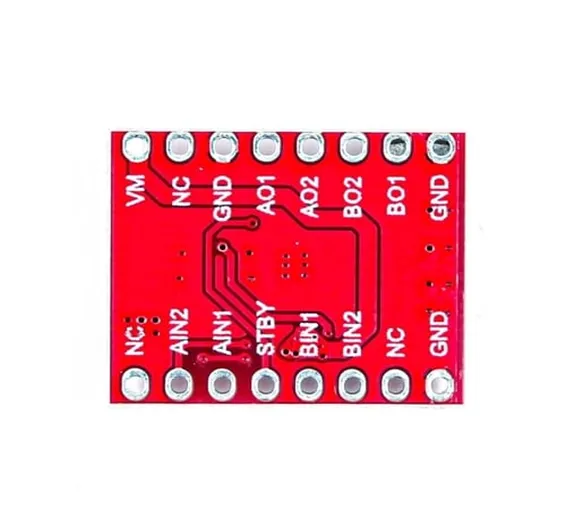

This Module has 16 pins:

  • VM: Motor voltage
  • GND: Ground – three grounds connected to each other
  • AO1: Positive end for motor A
  • AO2: Negative end for motor A
  • BO1: Positive end for motor B
  • BO2: Negative end for motor B
  • AIN1: Control signal for motor A
  • AIN2: Control signal for motor A
  • BIN1: Control signal for motor B
  • BIN2: Control signal for motor B
  • STBY: To active Standby mode, it should be HIGH
  • NC: Not used

Package Include:

  • 1 x DRV8833 Dual Motor Driver

Best online shopping website for DRV8833 DC Motor Driver Module Dual-channel 1.5A per channel 2.7 V to 10.8 V at cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan
