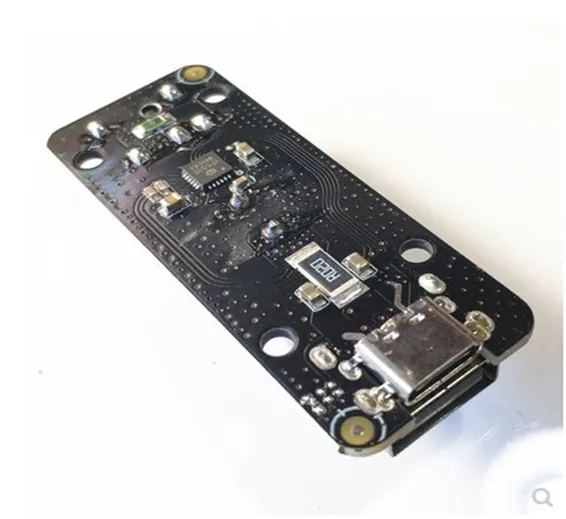

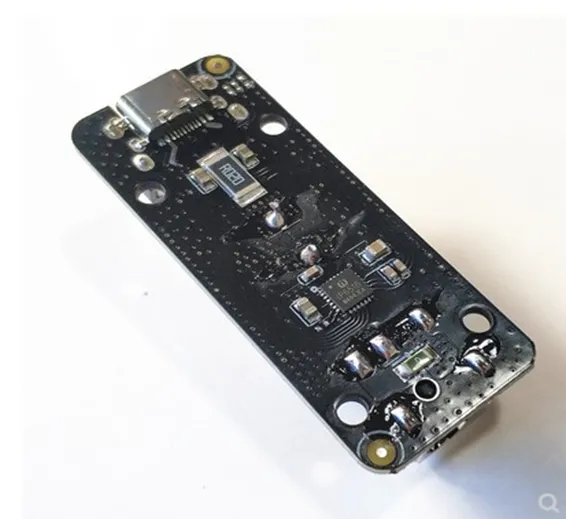

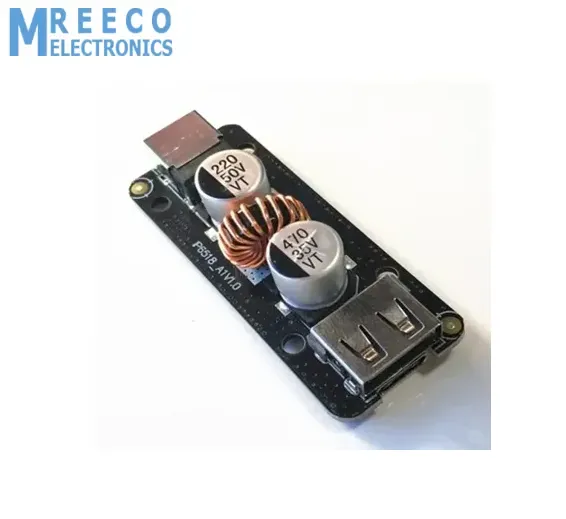

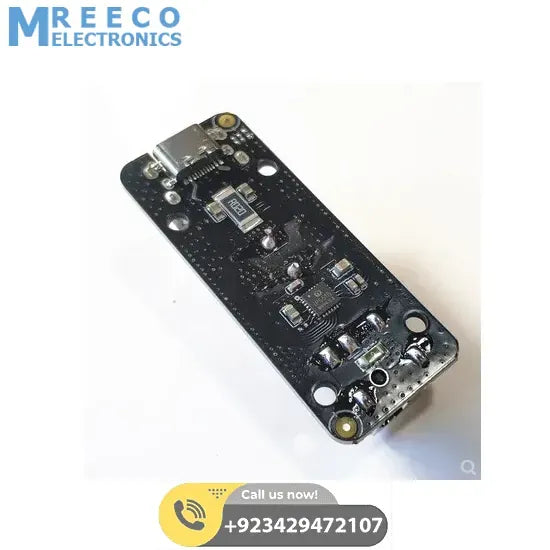

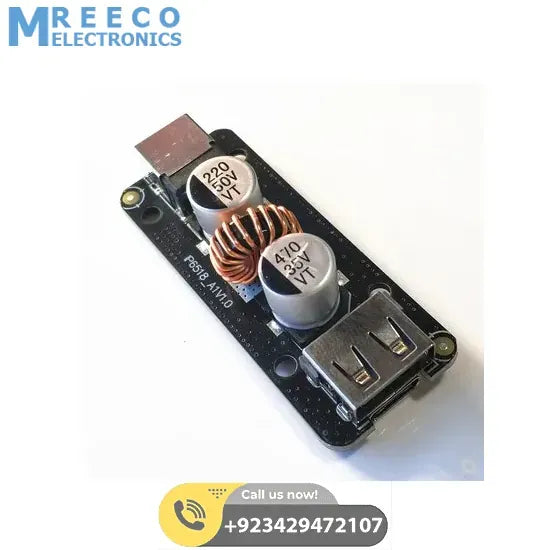

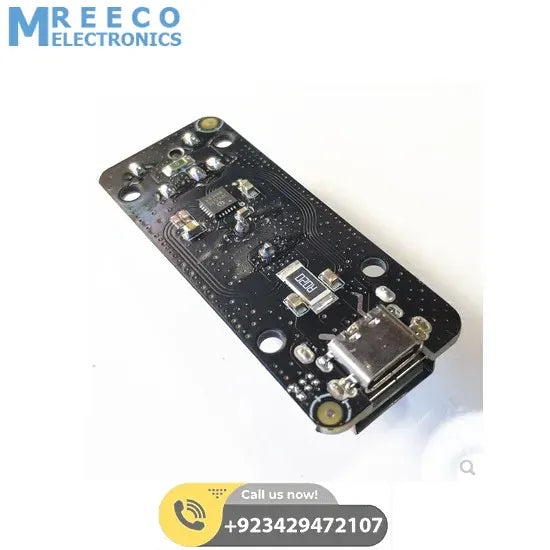

IP6518 Full Protocol Fast Charging Board Module Qualcomm QC3.0 FCP In Pakistan

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637724993867320995

Rs.550 Rs. 688

The IP6518 chip integrates the HiSilicon fast charge protocol and Qualcomm QC2.0/3.0USB interface fast charge protocol, which can quickly charge devices that support FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports Apple and FOR Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device to automatically adjust the voltage.

IP6518 Full Protocol Fast Charging Board Module Parameters:

  1. Input voltage range: 10.5 goes 32 V
  2. Output voltage range: 3 V to 20 V
  3. Automatic adjustment according to the fast charge protocol (the input must be higher than the 2 V output)
  4. Output power: 45 W WAVGAT store: Wavgat.aliexpress.com
  5. Output current:
  6. 3V --- 3.6A 5V ---- 3.4A
  7. 7V ---- 3A 9V ---- 3A 12V ---- 3A
  8. 15V ---- 2.3A 20V ---- 2.3A
  9. Police voltage output: 5 V 7 V 9 V 9 V 12 V 15 V 20 V
  10. Line add-on function, 125mv / A
  11. Conversion efficiency: 97%

Support for:

  1. BC1.2 Apple
  2. Qualcomm QC2.0 QC3.0
  3. Huawei FCP SCP
  4. Mediatek MTK PE + 1.1 / PE / + 2.0
  5. Samsung AFC quick charge agreement
  6. Fast loading protocol SFCP


  • Update of the One-plus mobile phone system, this chip is no longer compatible with one-plus flash charging;
  • High current USB plug due to the use of 5 A, the contact resistance is low. When using SCP and other high-current low-voltage loads, the load current can overcome the overcurrent protection phenomenon of A and IP651 8

Package Include:

  • 1 x IP6518 Full Protocol Fast Charging Board Module Qualcomm QC3.0 FCP
