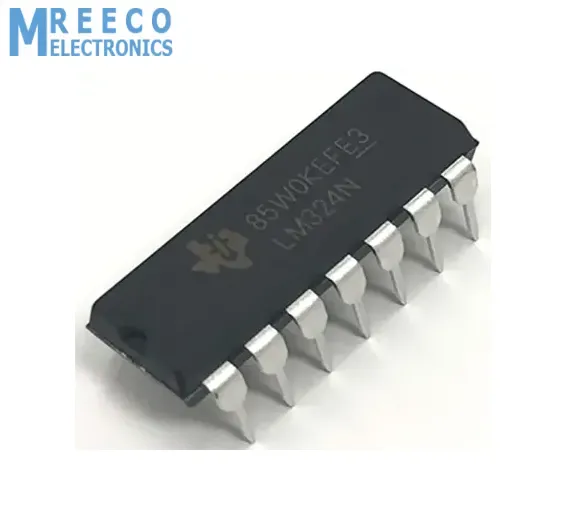

LM324 Quad OP-AMP Operational Amplifier IC

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720644759438614

Rs.50 Rs. 63

LM324 is a 14 pin IC consisting of four independent operational amplifiers (op-amps) compensated in a single package. Op-amps are high gain electronic voltage amplifier with a differential input and, usually, a single-ended output. The output voltage is many times higher than the voltage difference between the input terminals of an op-amp. These best op-amps are operated by a single power supply LM324 and the need for a dual supply is eliminated. They can be used as amplifiers, comparators, oscillators, rectifiers etc. The conventional op-amp applications can be more easily implemented with LM324.

Features & Specifications Of Single Supply Quad Operational Amplifiers LM 324:

  • Short Circuited Protected Outputs.
  • True Differential Input Stage.
  • Single Supply Operation: 3.0 V to 32 V.
  • Low Input Bias Currents: 100 nA Maximum (LM324A).
  • Four Amplifiers Per Package.
  • Internally Compensated.
  • Common Mode Range Extends to Negative Supply.
  • Industry Standard Pinouts.
  • ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation.
  • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
  • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant.

Pin Description:

  1. The output of 1st comparator: Output 1
  2. Inverting input of 1st comparator: Input 1-
  3. The non-inverting input of 1st comparator: Input 1
  4. Supply voltage; 5V (up to 32V): Vcc
  5. The non-inverting input of 2nd comparator: Input 2
  6. Inverting input of 2nd comparator: Input 2-
  7. The output of 2nd comparator: Output 2
  8. The output of 3rd comparator: Output 3
  9. Inverting input of 3rd comparator: Input 3-
  10. The non-inverting input of 3rd comparator: Input 3
  11. Ground (0V): Ground
  12. The non-inverting input of 4th comparator: Input 4
  13. Inverting input of 4th comparator: Input 4-
  14. The output of 4th comparator: Output 4

Package Includes:

  • 1 x LM324 Quad OP-AMP Operational Amplifier IC
