Metal detector non-contact metal induction detection module in Pakistan

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637725043766002247

Rs.650 Rs. 813

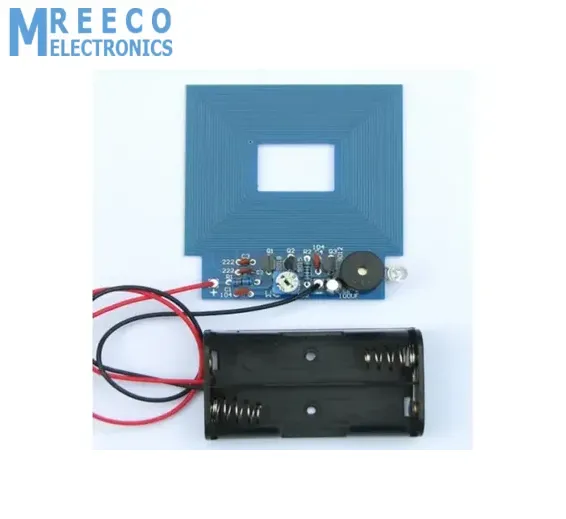

You can use LC Metal detector non-contact metal induction detection module as a metal detector. When it approaches any metal, it makes a sound. This is a module specifically designed to detect metal. The module operates by inducing currents in metal objects and responding when it occurs. A nice onboard buzzer signals when it detects something and an onboard potentiometer allow adjustment of sensitivity.

The power cables of the Metal detector non-contact metal induction detection module will need soldering on for the module to function, positive to the outside of the module and negative between the potentiometer and an electrolytic capacitor.

Metal detector Specification and Features:

  1. Working voltage: 5V DC.
  2. Detector distance: 1CM.
  3. Dimensions: 66 x 60 x 14 (LxWxH) mm.
  4. Weight: 15 gm.
  5. Redline: connect to power positive
  6. Black line: connect to power negative
  7. Adjust the potentiometer, let the modules work normally.

Package Includes :

  • 1 x Metal detector non contact metal induction detection module.
