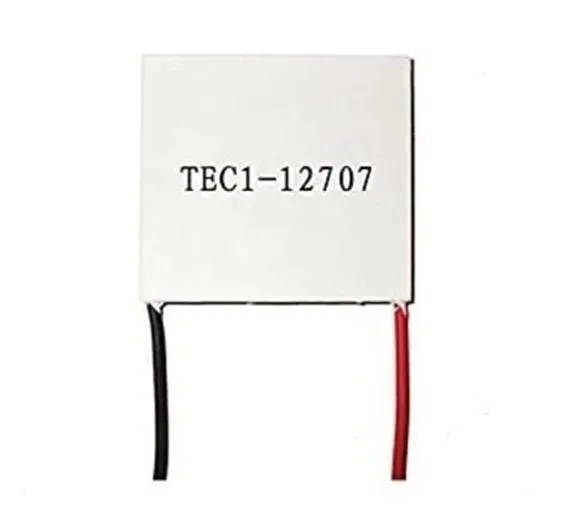

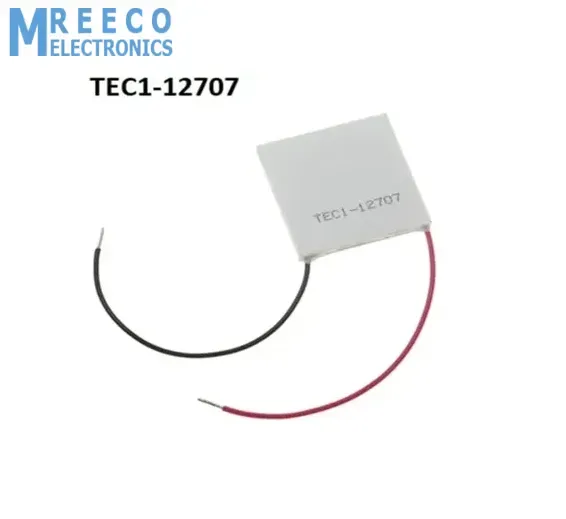

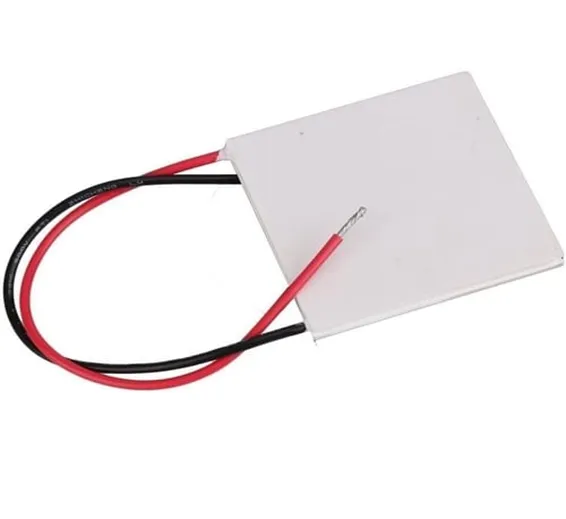

Thermoelectric Cooler Heat Sink Cooling Peltier Module TEC1-12707 DC12V 7A

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720662767852494

Rs.350 Rs. 438

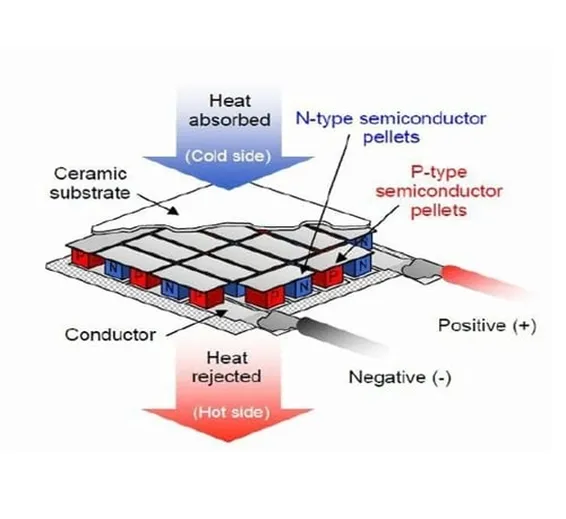

A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity. This Heat Sink Thermoelectric Cooler Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another water block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on

Features Of TEC1-12706 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt:

  • Solid-state design
  • No moving parts
  • No hazardous gases
  • Silent operation
  • Compact and lightweight
  • Sizes to match your component footprint
  • No bulky compressor units
  • Perfect for benchtop applications
  • Fully reversible with a switch in polarity
  • Supports rapid temperature cycling

Specifications Of Thermoelectric Cooler Peltier Heatsink 12V 7A 65W:

  1. Model: TEC1-12707
  2. Size: 40mm x 40mm x 4mm
  3. Operating voltage: 0~15.2V DC
  4. Umax(V):15.4V.
  5. Max current: 7A
  6. Operates Temperature: -30℃ to 70℃
  7. Max power consumption: 66Watts
  8. These devices must be used in conjunction with a heat sink to avoid burn-out
  9. Each device is fully inspected and tested
  10. Fitted with 6-inch insulated leads

Package Include:

  • 1 x TEC1-12707 Peltier Module
