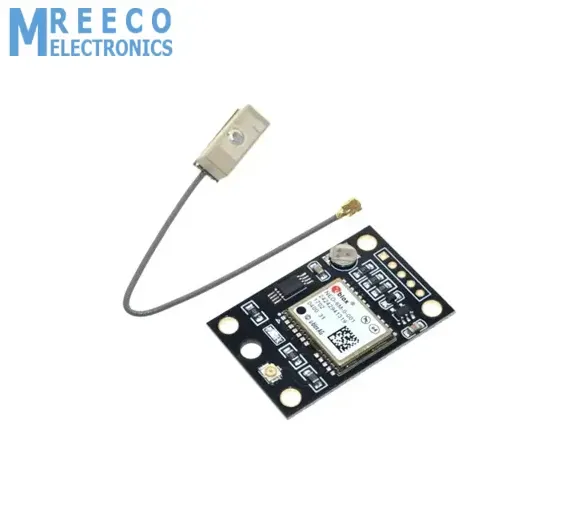

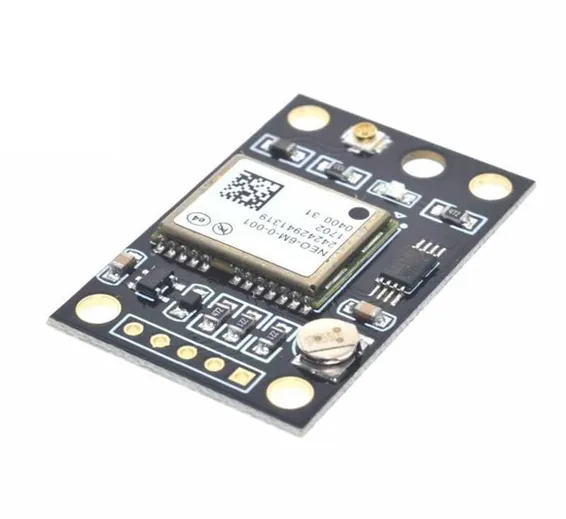

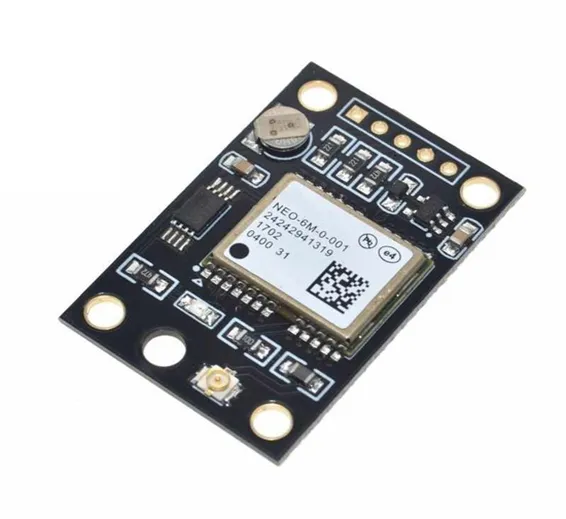

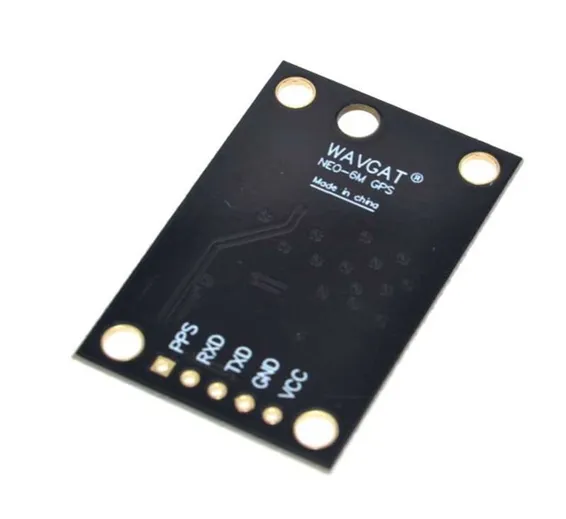

WAVGAT GY-NEO6MV2 Nuovo With Flight Control EEPROM MWC APM2.5 Big Antenna For Arduino

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637725013702146976

Rs.750 Rs. 938

The NEO-6 module series is a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. This flexible and cost effective receiver offers numerous connectivity options in a miniature package. It can be operated from 3.3V to 5V system, so all those 5V Arduino board ( Maker-UNO, Arduino-UNO, Mega, Leonardo and many more) and 3.3V controller that include Arduino and Raspberry Pi, work perfectly with this GPS module. Though it is 5V compatible, you will need a proper level shifter to interface with the serial (UART) line, please use proper level shifter to do it.

Specifications:

  1. Size: about 2.5 x 3.5 / 0.98 x 1.38 inch
  2. Model: GY - GPS 6 MV 2.
  3. Hold the data backup battery.
  4. It is compatible with various flight control modules.
  • Hold the ceramic antenna.
  • With LED signal indicator light.
  • Power supply: 3-5V.
  • Default baud rate: 9600.
  • Product description:

    1. Strong signal and antenna, mini size module.
    2. When the power down EEPROM saves configuration parameter data.
    3. Hold the data backup battery.
    4. With LED signal light.
    5. It is compatible with various flight control modules.

    Package includes:

    • 1 x GY - NEO 6 MV 2 GPS module

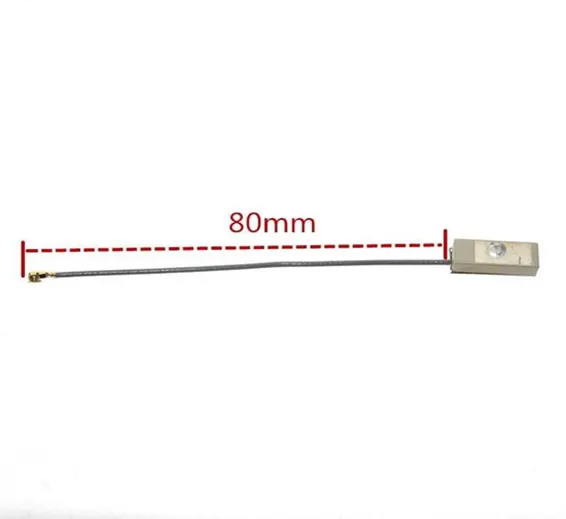

    • 1 x antenna
